Clean Tractor of Trash Build-up

causym CAUTION: Trash build-up between tracks and tractor chassis or cab, with narrow tread setting, can cause fire from increased friction. Set track to WIDEST position possible for an application and check for trash build-up. Prepare for emergencies by keeping a fire extinguisher at hand.

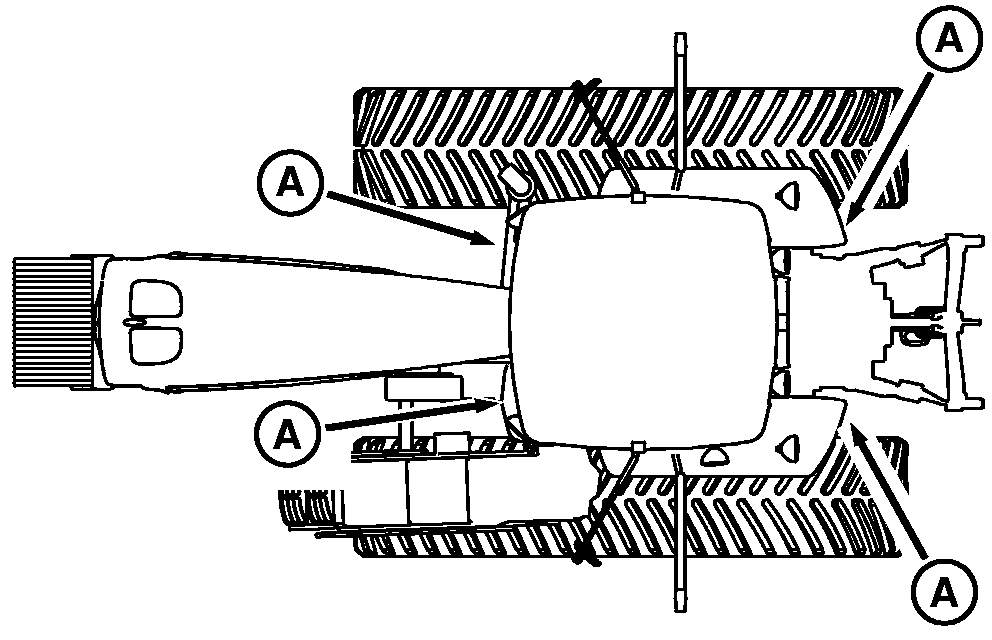

Working in cornstalks or other trashy conditions may cause material to be trapped in trash build-up points (A) between tracks and tractor chassis or cab. High speed operation or road transport can cause fire from increased friction.

  • Clean area between tracks and tractor chassis or cab often
  • Set tracks to WIDEST position for an application to allow trash to fall out and not accumulate.
  • Keep fire extinguisher at hand.


A-Trash Build-up Points

TS227
RXA0070938

OURX935,000002C -19-18MAY05-1/1
