Using Correct Hitch Position

IMPORTANT: Excessive power can damage an implement, and a too large implement can damage the tractor.

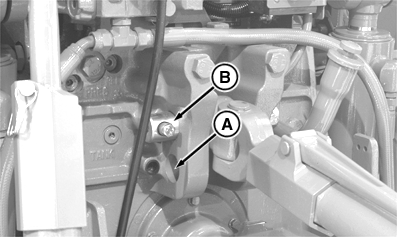

Standard tractors and tractors with optional lift capacity have two center link attaching points. Attach center link to lower hole (A) for most standard implements. Use upper hole (B) with implements requiring higher lift capacity. See implement Operator's Manual for recommendations.

Refer to lift capacities in Specifications section.

A-Lower Hole
B-Upper Hole

OURX935,0000042 -19-17JUN05-1/1
