Using Sway Blocks

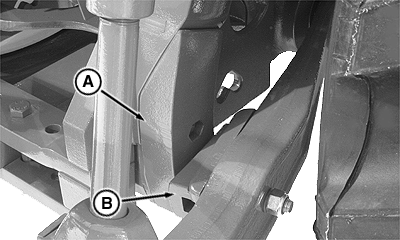

Install sway blocks (A) in lower position to minimize side sway of hitch.

Adjust bumper (B) to limit the amount of sway.


A-Sway Blocks
B-Bumper

RXA0057194

OURX935,000004D -19-09AUG05-1/2

IMPORTANT: Prevent sway block interference with hitch cylinder hose. Store sway block on same side from which it was removed.

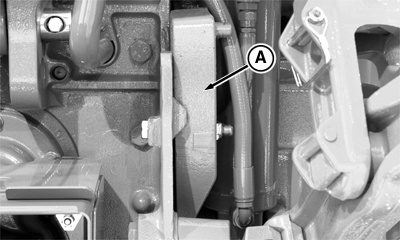

Mount sway blocks (A) in upper storage position to allow side sway when hitch is lowered. Side sway is prevented when hitch is raised.


A-Sway Blocks

RXA0056484

OURX935,000004D -19-09AUG05-2/2
