Adjusting Implement Level

IMPORTANT: Do not adjust center link length more than 762 mm (30 in.) to avoid interference between quick coupler and center link in high lift (upper hole). Center link could be damaged.

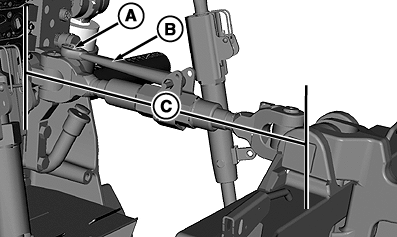

Adjust center link to level implement front-to-rear. Remove locking ring (A), lift handle (B) and slide collar rearward. Rotate center portion of center link to desired position.

Secure handle with locking ring.

Measure between centers of pins (C).

Center Link - Specification

Adjustment -Length 690-834.5 mm (27.2-32.8 in.)

RXA0083134


A-Locking Ring
B-Handle
C-Distance

OURX935,000004F -19-11AUG05-1/2

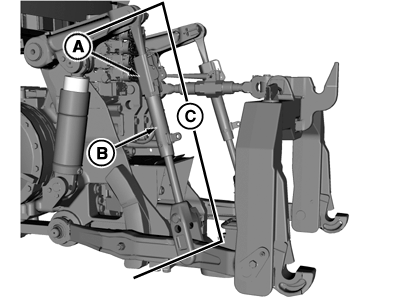

Adjust lift links to level implement side-to-side. Slide collar (A) upward. Rotate center portion (B) of lift link to desired position.

Secure collar in position.

Measure between centers of pins (C) with float locked out.

Lift Link - Specification

Adjustment -Length 1004-1143 mm (39.5-45 in.)


A-Collar
B-Center Portion
C-Distance

RXA0083135

OURX935,000004F -19-11AUG05-2/2
