Operating Rotary Beacon Light (If Equipped)

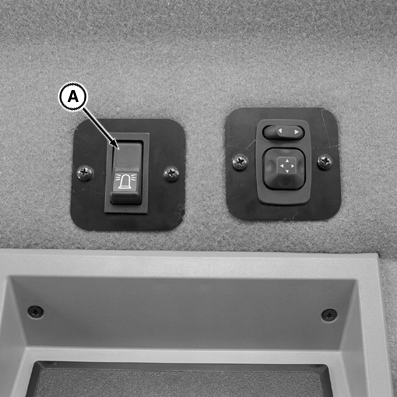

Push Rotary Beacon Switch (A) to activate the Rotary Beacon Light (B).

When Rotary Beacon Light is not being used:

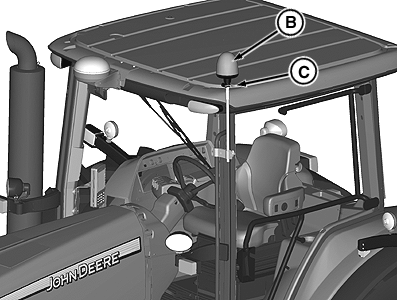

  • Loosen nut (C) and remove Rotary Beacon Light (B)
  • Install rubber protective cap on connector


A-Rotary Beacon Switch
B-Rotary Beacon Light
C-Nut

RXA0080457
RXA0078737

OURX935,0000053 -19-29JUL05-1/1
