Adjusting Drawbar Height

Height of drawbar is adjustable by turning offset (A) up or down. Proceed as in length adjustment. Slide drawbar all the way out and turn drawbar over.

IMPORTANT: Clevis assembly must always be on top of drawbar if used.

Heavy duty support cannot be used with drawbar offset positioned upward.

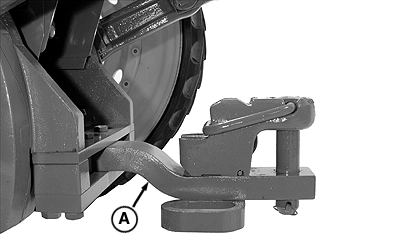

A-Offset
