Using PTO Shield

causym CAUTION: Avoid personal injury. Put the PTO shield in correct position at all times. Do not use shield as a step.

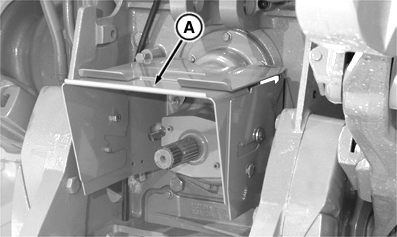

Move PTO shield (A) into correct position.

To extend shield, lift up rear portion of shield and tilt front portion of shield (B) down. Slide front portion of shield (C) forward and pull up to locked position.


A-PTO Shield
B-Shield
C-Shield

RXA0057319
RXA0057317
RXA0056529

OURX935,000005D -19-19MAY05-1/2

Lift shield to raised position to provide clearance while connecting implement driveline to the PTO shaft.

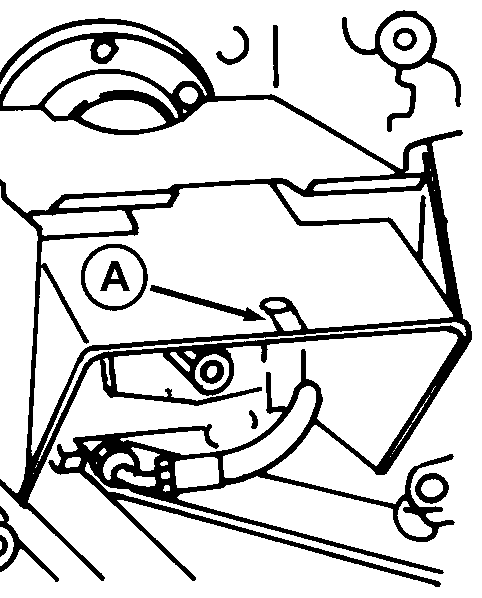

Slot (A) must be cut in the PTO shield to connect an implement with an old-style tunnel shield. Cut from the edge of the shield to the small hole.


A-Slot

RXA0056530
RW26283

OURX935,000005D -19-19MAY05-2/2
