Using QUIK-TATCH Side Weights

Up to five QUIK-TATCH weights can be installed on the side weight support on each side of the tractor near the engine.

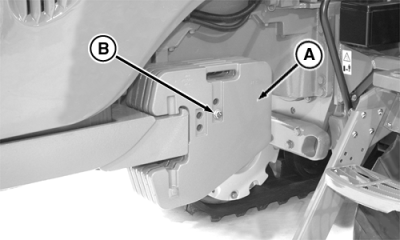

Install an equal number of weights (A) on each side of the tractor.

Install retaining bolts (B) through holes and secure with a nut to hold five weights or fewer in position.

Weight Attaching Bolts - Specification

A-Weights
B-Retaining Bolts

OURX935,0000069 -19-05AUG05-1/1
