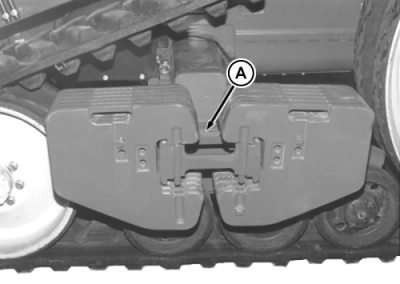

Using Side Frame QUIK-TATCH WeightsUp to 14 QUIK-TATCH weights can be added to each side of the tractor. Frame weight bracket (A) can be turned over to provide 597 mm (23.5 in.) or 356 mm (14 in.) of crop clearance. NOTE: Only 10 weights can be used with frame weight bracket in the 597 mm (23.5 in.) position in combination with 25-inch track set to 2032 mm (80 in.) or more. 16-inch track can accommodate the maximum 14 weights at any tread setting. Use ballast, as necessary, to maintain slip in the 2-5 percent range. Maintain correct weight split and do not over ballast the tractor. NOTE: Frame weights must be removed when spray tanks are installed. |
|
