Using Drive Wheel Weights

CAUTION: Avoid personal injury. When installing weights, use appropriate lifting equipment or have job performed by your John Deere dealer.

NOTE: Frame weights are preferred. Use wheel weights only when total vehicle weight or crop or ground clearance is a concern.

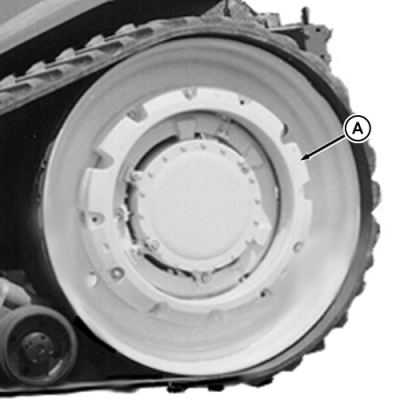

Up to three wheel weights can be added to each drive wheel. Each weight (A) weighs 150 kg (330 lb).

A-Weight

OURX935,000006B -19-19MAY05-1/1
