Using Idler Wheel Weights

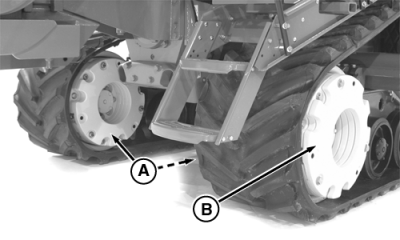

Install one starter weight on each side (inside and outside) of each front idler wheel. Install the same number of stackable weights on inside (A) and on the outside (B) of each idler wheel.

Belt Width Starter Weights * Stackable Weights *

16 in. 1 2
18 in. 1 2
24 in. 1 4
30 in. 1 6

* Number of weights on each side of each idler wheel


RXA0058424


A-Inside
B-Outside

OURX935,000006C -19-19MAY05-1/1
