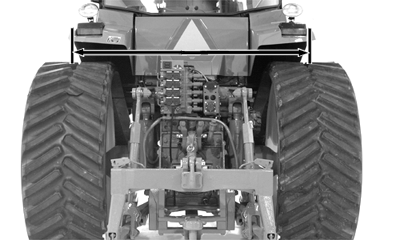

Tread Setting-Standard

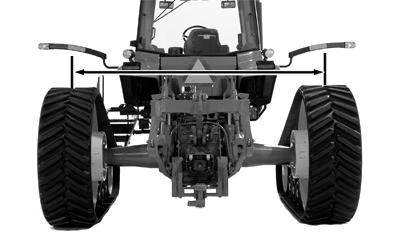

Tread Setting-Wide Axle Option

Tread setting is measured between the center of the tracks.

NOTE: Tread spacing can be adjusted by 102 mm (4 in.) increments-51 mm (2 in.) per side.

Setting of 2125 mm (84 in.) is not available.

Tread Setting-Standard
Track Size	Tread Range

16 in.	1525-2225 mm (60-88 in.) ^a
18 in.	1625-2225 mm (64-88 in.) ^a
25 in.	1725-2225 mm (68-88 in.)
30 in.	1925-2225 mm (76-88 in.)

^a1675 mm (66 in.) requires moving track frames from side-to-side

NOTE: Wide Axle Option -Tread settings range from 2235-3035 mm (92-120 in.) for 16, 18, 25 and 30 in. wide tracks.

Tread setting of 2485 mm (98 in.) requires moving track frames from side to side.
