Drive Wheel Settings

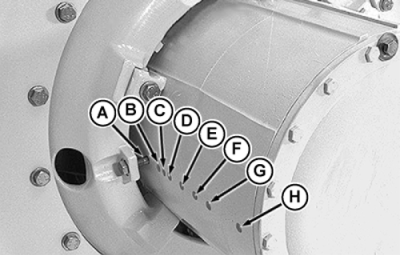

Center positioning screws into holes as shown for desired tread settings:
| Drive Wheel Hub Settings |
| |
| Position |
Standard |
|
Wide Axle |
| A |
1525 mm |
(60 in.) |
|
2235 mm |
(92 in.) |
| B |
1625 mm |
(64 in.) |
|
2435 mm |
(96 in.) |
| C |
1675 mm |
(66 in.) |
|
2485 mm |
(98 in.) |
| D |
1725 mm |
(68 in.) |
|
2535 mm |
(100 in.) |
| E |
1825 mm |
(72 in.) |
|
2635 mm |
(104 in.) |
| F |
1925 mm |
(76 in.) |
|
2735 mm |
(108 in.) |
| G |
2025 mm |
(80 in.) |
|
2835 mm |
(112 in.) |
| H |
2225 mm |
(88 in.) |
|
3035 mm |
(120 in.) |
NOTE:
Tread setting of 1675 mm (66 in.) or 2485 mm (98 in.) requires moving track frames from side to side.
|
