Drain Vari-Cool Gen II Oil Line-Late Model Tractors

SERVICE INTERVAL - 1500 HOURS




1. Raise hood.

2. Remove four cap screws (B) and right-hand front side panel (A).

3. Remove three cap screws (C) and lift diverter panel (D) out.

4. Loosen jam nut (E) on bleed screw (F).

IMPORTANT: Removing bleed screw will drain oil. Loosen bleed screw only enough to bleed oil back into reservoir (a maximum of two full turns).

5. Loosen bleed screw.


A-Side Panel
B-Cap Screws
C-Cap Screws
D-Diverter Panel
E-Jam Nut
F-Bleed Screw

RXA0085938

Remove front side panel

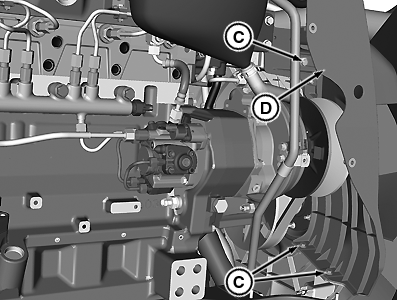

RXA0095822

Diverter Panel

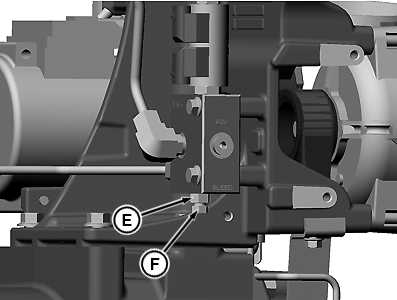

RXA0095826

Loosen Bleed Screw Located In Front Of Alternator

OURX935,0000073 -19-21SEP07-1/2

6. Push sheave (B) rearward.

7. Using a pint-size catch container placed under drive, remove drain plug (A).

8. Install drain plug.

NOTE: Bleed screw must be closed for proper tension to be applied to belt once tractor is started.

9. Close bleed screw, tighten to specification and tighten jam nut.

Specification

Bleed Screw -Torque 25 N·m 221 lb-in.

10. Install diverter panel and right-hand side front shield and torque to specification.

Diverter Panel Cap Screws - Specification

Cap Screw -Torque 20 N·m (15 lb-ft)

11. Install right-hand front side panel.

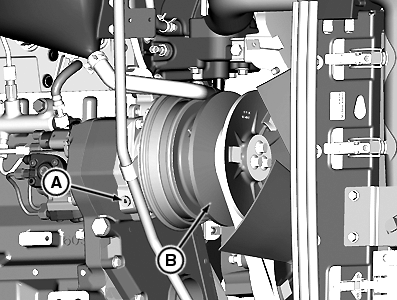

RXA0096078


A-Drain Plug
B-Sheave

OURX935,0000073 -19-21SEP07-2/2
