Positioning Steps

Steps can be adjusted side-to-side to accommodate various row spacings.

Remove cap screws (A) and loosen cap screws (B).

Move steps to desired position and install cap screws (A). Center of steps should align with center of track.

Tighten cap screws to torque specifications.

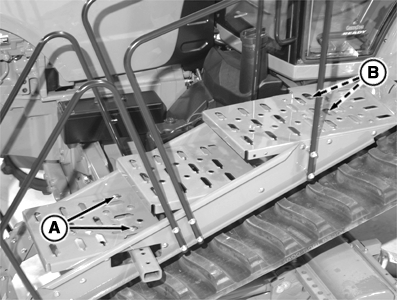

RXA0062983


A-Cap Screws
B-Cap Screws

Item Measurement Specification

Cap Screws

Torque 73 N·m (54 lb-ft)

OURX935,000009A -19-04JUN05-1/1
