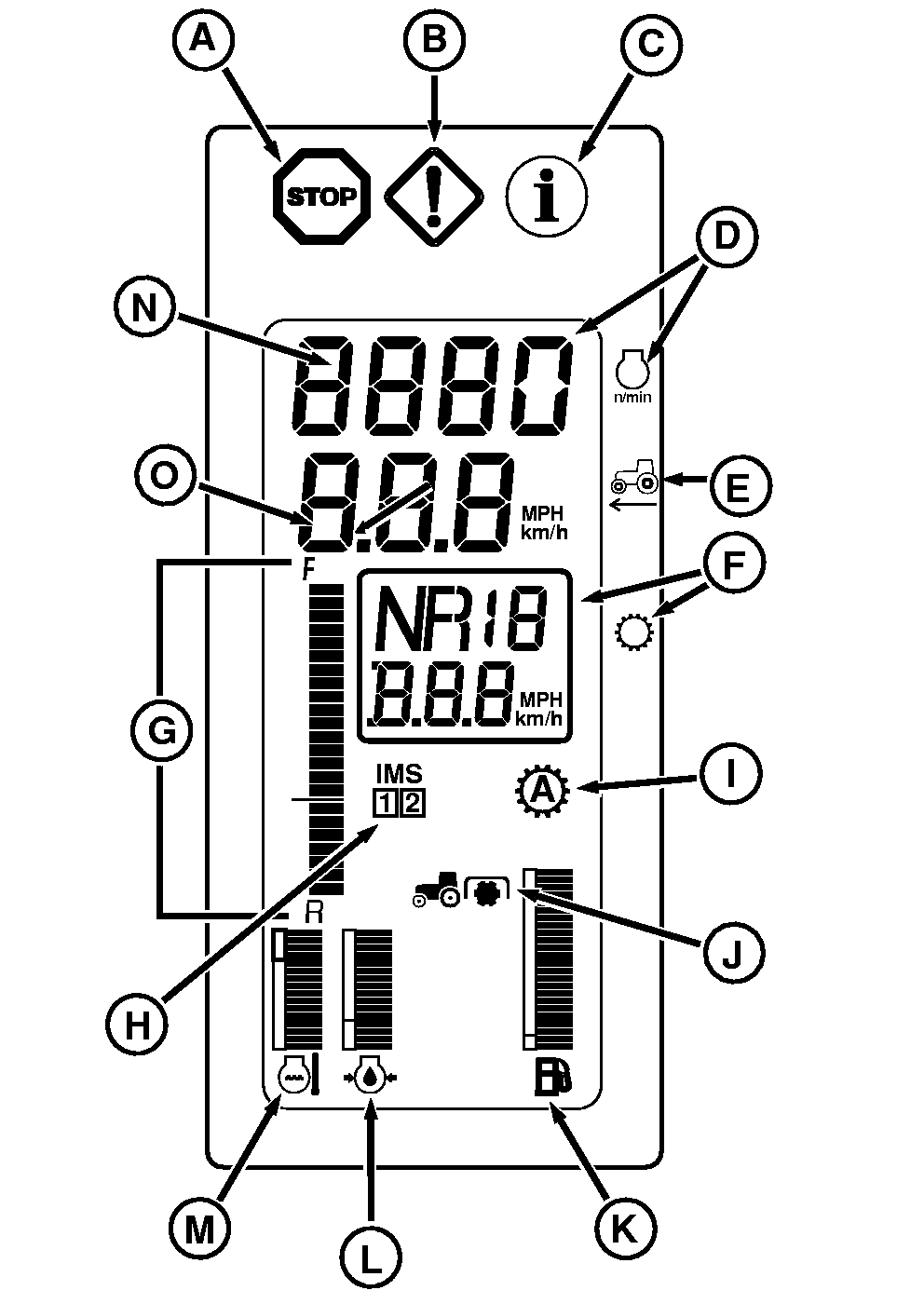

Corner Post Display
NOTE:
Operation indicators (H-J) activate when function is engaged.
A-STOP Indicator
B-Service Alert Indicator
C-Information Indicator
D-Tachometer
E-Direction
F-Transmission Indicator
G-Analog Speedometer
H-IMS ON/OFF and Sequence Indicators
I-Automatic Powershift Indicator
J-PTO Indicator-Rear
K-Fuel Level Gauge
L-Engine Oil Pressure Gauge
M-Coolant Temperature Gauge
N-Engine Speed (rpm)
O-Ground Speed
|
