Using Extremity Transport Lights

CAUTION: Extremity Transport Lights (A) are needed when tractor width exceeds 3.7 m (12 ft.). Always use road lights and transport warning lights when operating tractor on a road or highway at night OR during the day. Extremity Transport Lights alert other vehicles of your extended width.

IMPORTANT: To avoid damage, Extremity Transport Lights may be retracted when parking tractor in storage building.

Extremity Transport Lights operate with Hazard Light Switch in "ON" position or Light Switch in "road" position.

Adjust Extremity Transport Lights (A) no more than 400 mm (16 in.) from widest point of tractor.

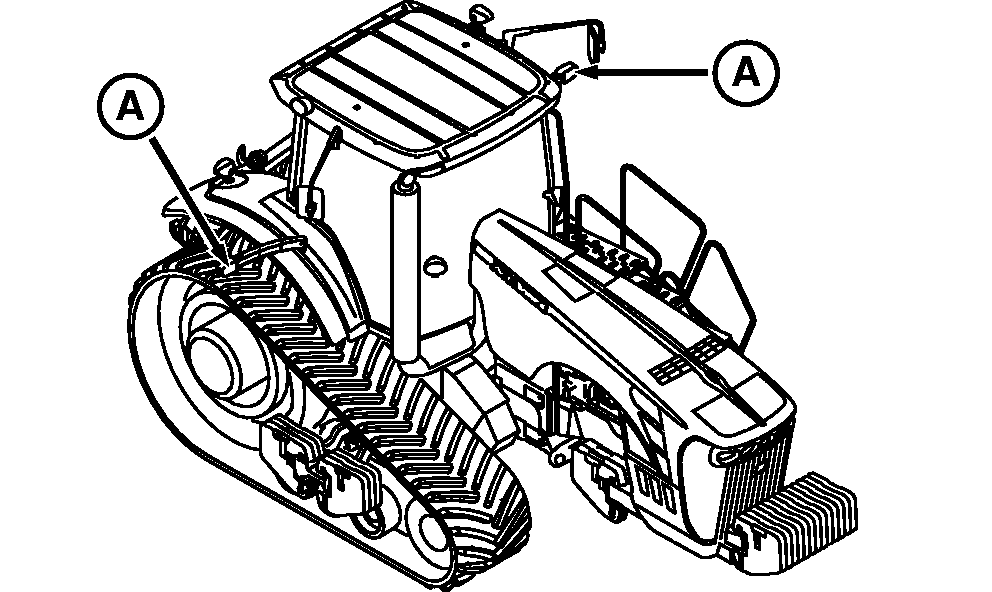

A-Extremity Transport Light

OURX935,00000B1 -19-29JUL05-1/1
