Transmission/Hydraulic System Warm-Up

Avoid operating tractor under load until transmission/hydraulic system has warmed up.

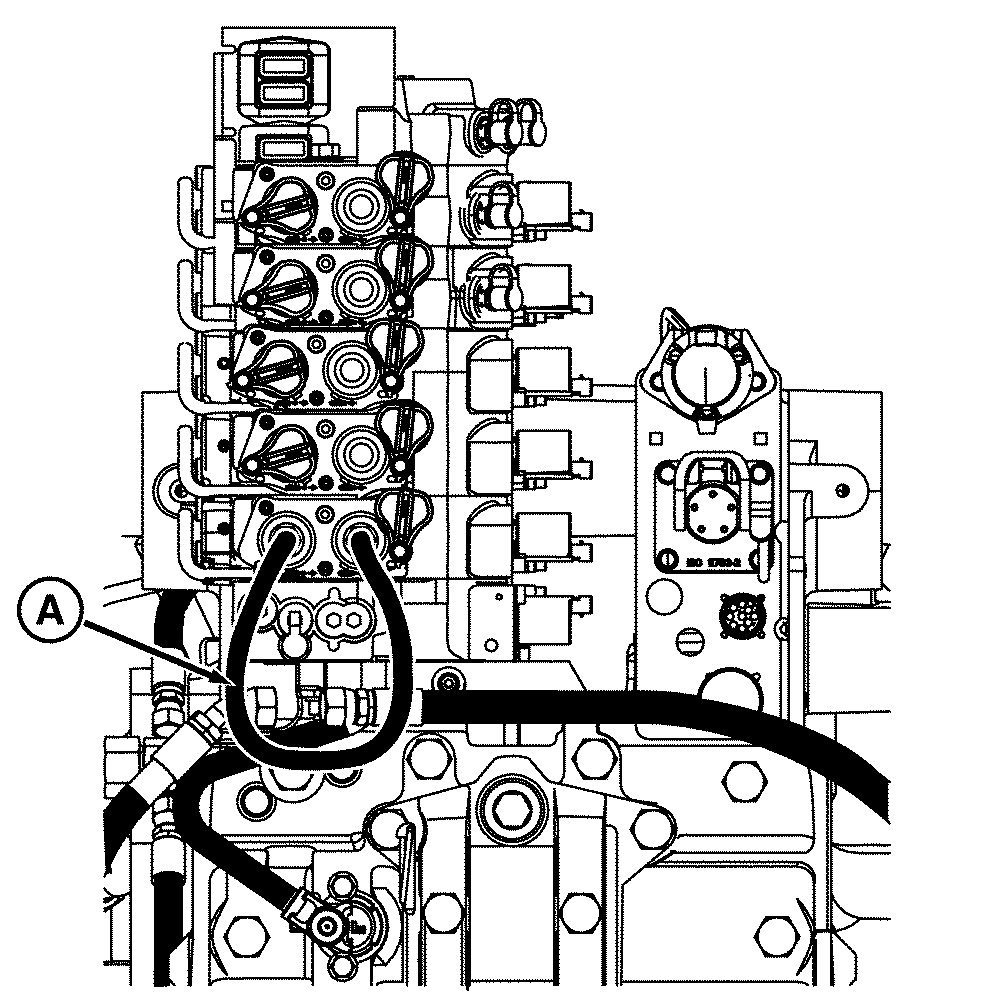

Install jumper hose (A) into SCV I coupler.

Shift transmission to PARK position and operate engine at 1500 rpm.

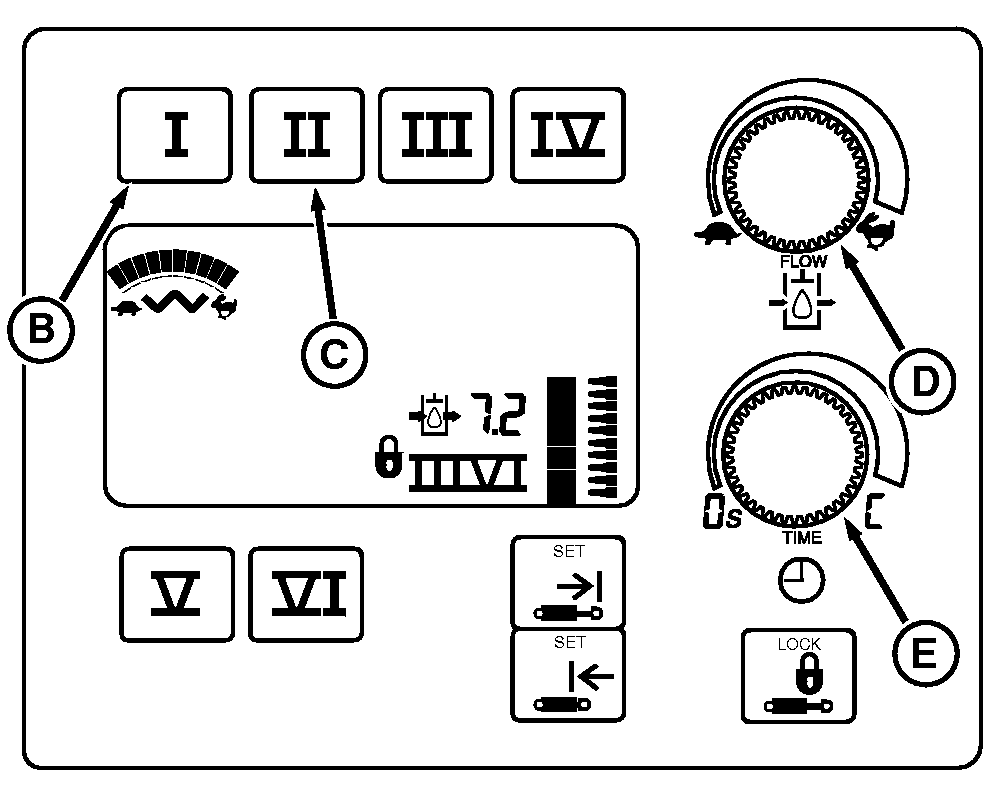

On TouchSet control panel, push SCV I switch (B). Turn time control knob (C) to (continuous) detent position "C".

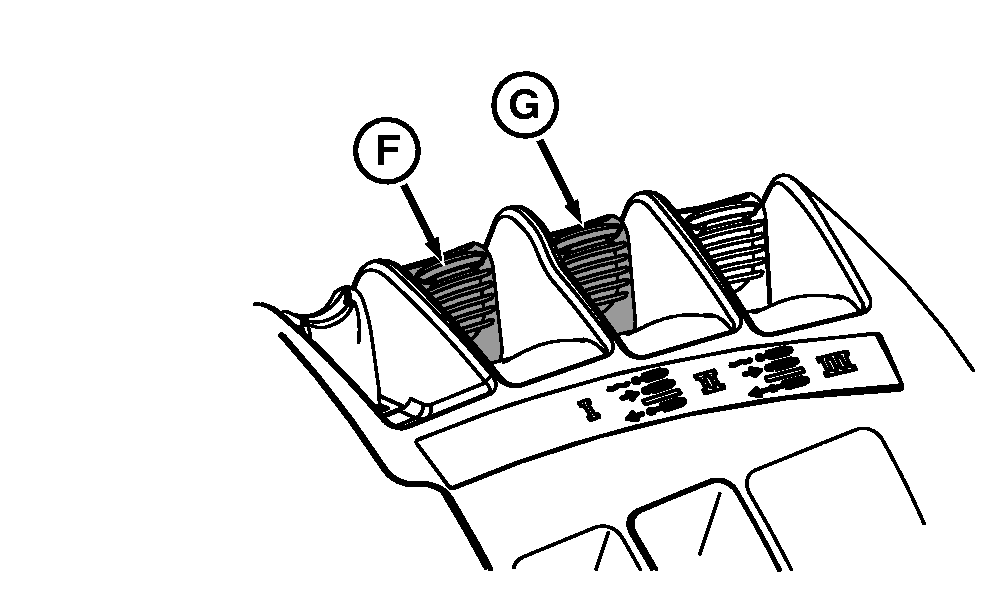

Pull SCV I lever (F) to extend position.

On TouchSet control panel, push SCV II switch and turn time control knob to continuous detent position.

Pull SCV II lever to extend position.

Select SCV I and turn oil flow rate knob (D) counterclockwise until engine is slightly loaded (approximately 7.0-7.2).

Return SCV I and SCV II levers to neutral position after transmission/hydraulic system has warmed up.


A-Jumper Hose
B-SCV I Switch
C-SCV II Switch
D-Oil Flow Rate Knob
E-Time Control Knob
F-SCV I Lever
G-SCV II Lever

RXA0082179
RXA0083192
RXA0080647

OURX935,00000C2 -19-09AUG05-1/1
