Checking Engine Oil Level

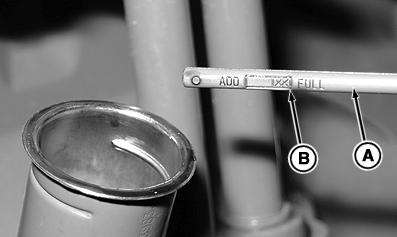

Remove dipstick and check oil level with tractor on level ground before starting tractor. Oil level should be between the ADD and the top of the cross-hatch area (B) on dipstick (A).

NOTE: Tighten dipstick to check oil. Cross-hatch area is considered FULL.

IMPORTANT: Do not operate engine with oil level below the ADD mark on dipstick.

A-Dipstick
B-Cross Hatch Area

OURX935,00000F2 -19-13SEP07-1/1
