Replacing Steering Filter

SERVICE INTERVAL - 750 HOURS *

* Interval can vary according to operating conditions

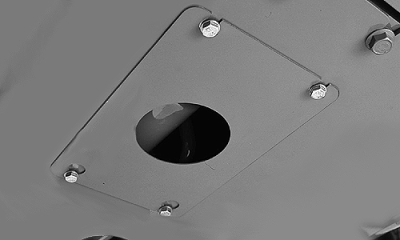

Loosen bolts and remove access panel.

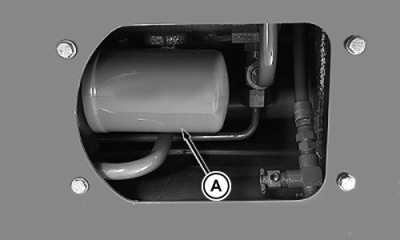

Remove filter (A).

Lubricate new filter packing with hydraulic oil only.

Install and hand tighten filter.

Check oil level and add as required.


A-Filter

RW56381
RW56384A

OURX935,00000F8 -19-13SEP07-1/1
