Draining Clean Oil Reservoir

IMPORTANT: Change oil in clean oil reservoir if it is contaminated with water.

Drain transmission/hydraulic oil.

Remove access plate under the differential housing.

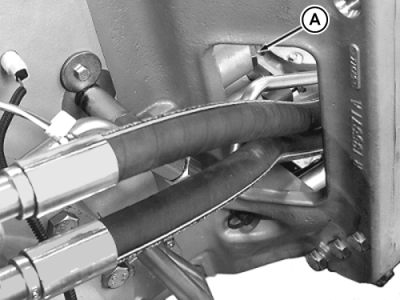

NOTE: Fitting (A) is located on right side of differential housing forward of the steering motor.

Locate and remove fitting (A) using a breaker bar. Allow oil to drain. Capacity is approximately 41 L (11 gal).

Install fitting and access plate.

IMPORTANT: Fill differential housing with oil. Start engine and run at slow idle until clean oil reservoir level indicator light goes off (approximately 2 minutes).

A-Fitting

OURX935,00000F9 -19-13SEP07-1/1
