Cleaning Transmission Filter Screen

IMPORTANT: Transmission scavenge pump filter screen must be cleaned when changing the transmission/hydraulic oil.

Drain transmission/hydraulic oil.

Remove cover (A) and fitting (B).

Remove filter screen and wash carefully in solvent. Blow-dry screen with compressed air.

Install fitting and cover.

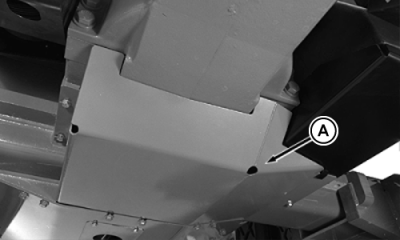

A-Cover

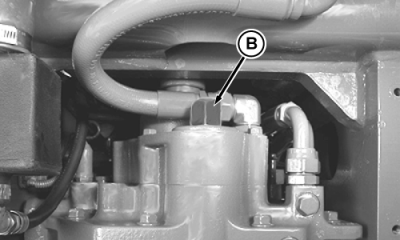

B-Fitting

OURX935,00000FB -19-13SEP07-1/1
