Cleaning Hydraulic Oil Suction Screen

Drain transmission/hydraulic oil.

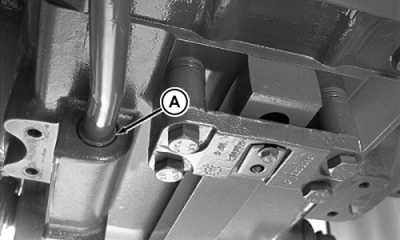

Remove oil line (A), located on the front left side of the differential case. Remove suction screen and wash screen carefully in solvent. Blow-dry screen with compressed air.

Install line making sure O-ring is correctly positioned.

A-Oil Line

OURX935,00000FC -19-13SEP07-1/1
