Changing Drive Wheel Hub Housing Oil

Park tractor on level surface.

Rotate wheels until drain hole (A) is at bottom of hub. Remove plug from each side and drain oil into a pan.

Reinstall plugs after oil has drained.

Refill transmission/hydraulic oil at fill tube (B). Use oil specified in Fuels, Lubricants, and Coolant section.

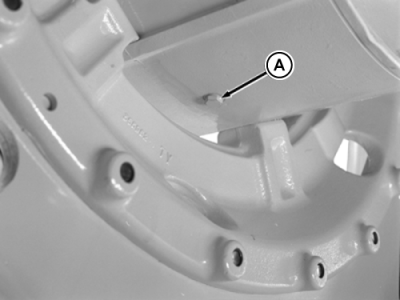

A-Drain Hole

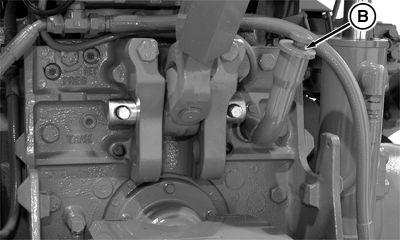

B-Fill Tube

OURX935,00000FD -19-13SEP07-1/1
