Checking Mid-Rollers Oil Level

SERVICE INTERVAL - 1500 HOURS

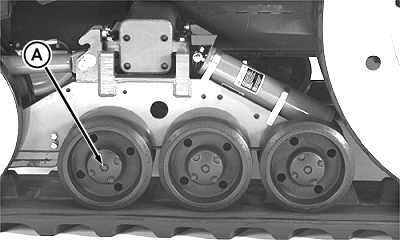

Remove plug (A) on each mid-roller. Oil should be level with plug opening.

Fill with John Deere HY-GARD oil as required.


A-Plug

RW26690

OURX935,0000100 -19-13SEP07-1/1
