Lubricating Hitch Components

SERVICE INTERVAL - DAILY OR 10 HOURS

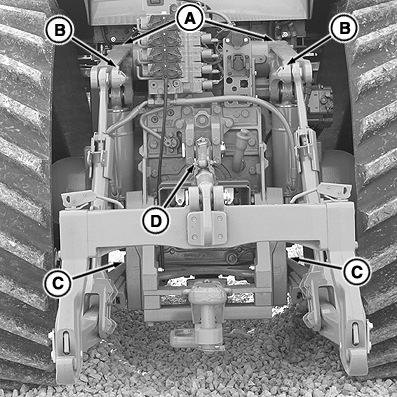

Apply several shots of grease to lubrication points (A-D).


A-Rockshaft
B-Lift Cylinders
C-Lift Links
D-Center Link

RXA0082049

OURX935,0000102 -19-05FEB08-1/1
