IMS Functions

NOTE: APS maximum gear must be set each time the tractor is started.

APS switch (A) can be cancelled or resumed during LEARN mode.

APS is cancelled by programing a transmission shift in IMS. (See Operating Automatic Powershift in Operating the Tractor Section.)

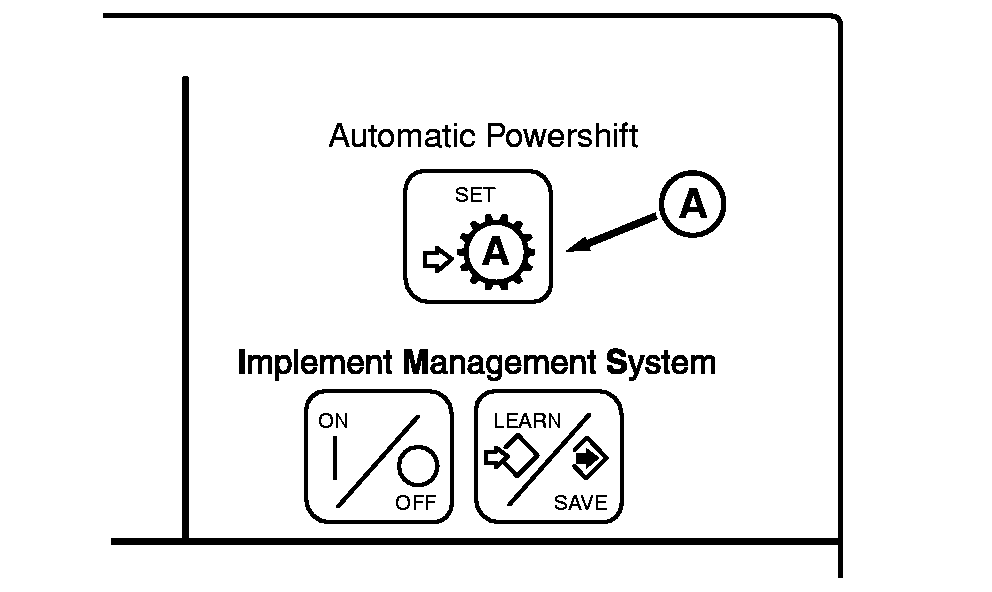

A-Automatic Power Shift Switch

RXA0081718

OURX935,000011F -19-16JUN05-1/1
