Inspecting Tracks, Drive Wheels, Mid-Rollers and Idler Wheels

IMPORTANT: Avoid grease, oil, or other petroleum chemicals on tracks and wheels. Constant exposure to petroleum based chemicals may damage rubber surfaces.

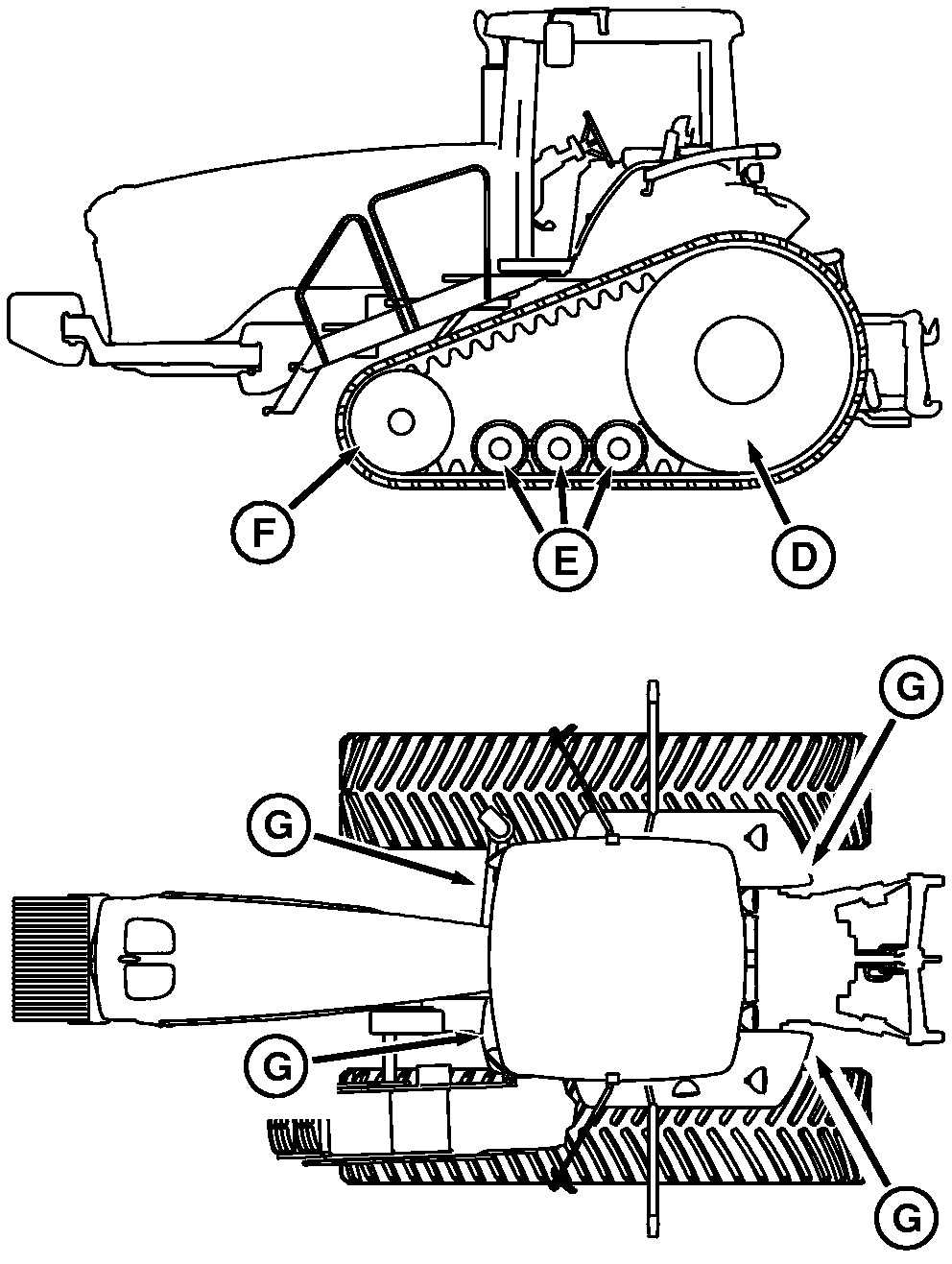

Trash build-up can cause fire from increased friction. Remove trash from trash build-up points (G) between tack and tractor frame.

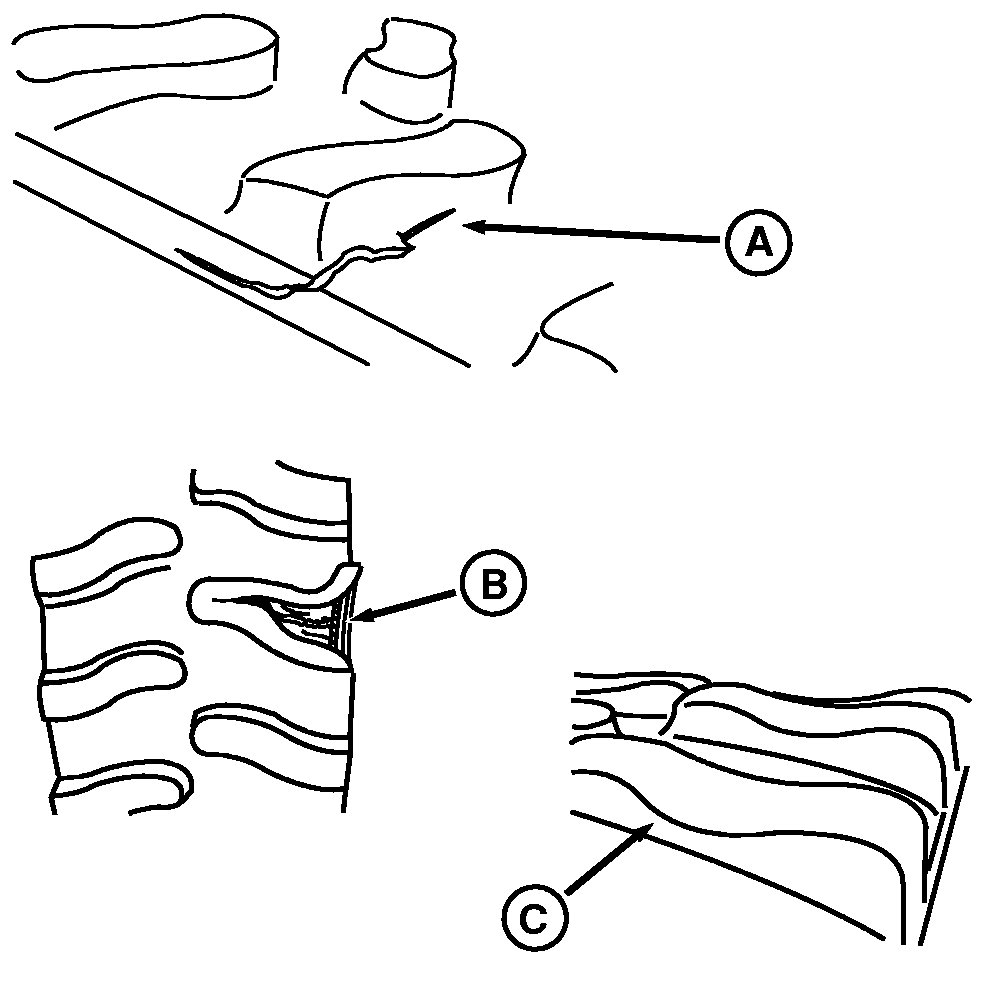

Inspect for cracking (A), chunking or chipping (B) and/or uneven wear (C) on rubber surfaces of drive wheels (D), mid-rollers (E) and idler wheels (F).

A-Cracking
B-Chipping or Chunking
C-Uneven Wear
D-Drive Wheels
E-Mid-Roller
F-Idler Wheels
G-Trash Build-Up Points

OURX935,000013E -19-10JAN08-1/1
