Replacing Auxiliary Drive Belt

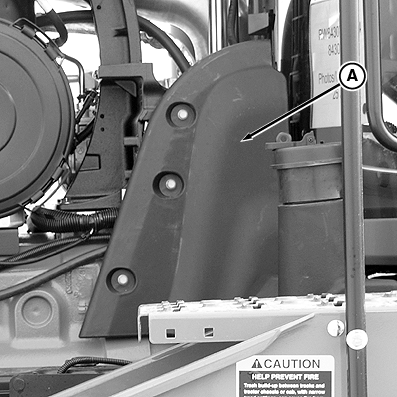

A-Left-Hand Shield

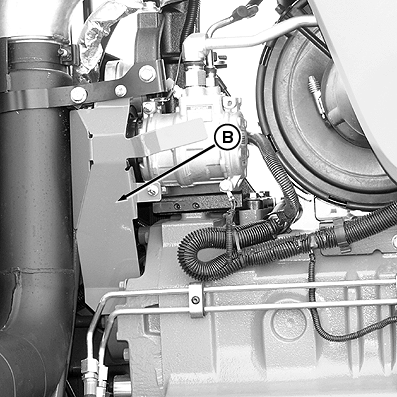

B-Right-Hand Shield

OURX935,0000154 -19-10JAN08-1/2

IMPORTANT: Keep tension off belt during removal.

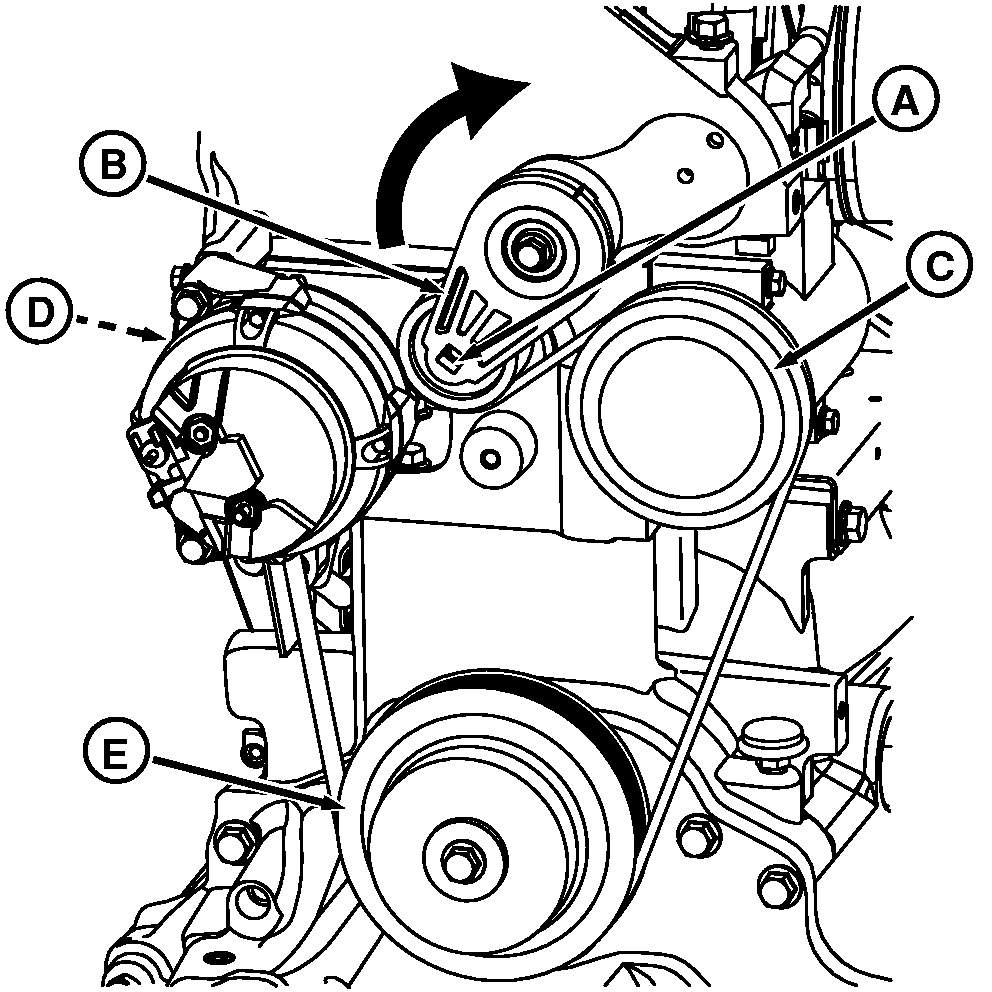

2. Insert 1/2 in. drive tool into square hole (A) in tensioner arm (B).

3. Push up tool handle to relieve tension on drive belt.

4. Remove belt from air conditioner pulley (C).

5. Remove belt from alternator pulley (D).

NOTE: Clearance between transmission auxiliary drive pulley and tractor frame is minimal. Do not snag old belt when removing.

6. Remove belt from auxiliary drive pulley (E).

7. Discard old belt.

NOTE: There is minimal clearance between transmission auxiliary drive pulley and tractor frame. Do not damage new belt when installing.

8. Install new belt to auxiliary drive pulley.

9. Install belt on alternator pulley.

10. Install belt on air conditioner pulley.

11. Remove 1/2 in. drive tool restoring tension on new belt.

12. Install shield.

A-Square Hole
B-Tensioner Arm
C-Air Conditioner Pulley
D-Alternator Pulley
E-Auxiliary Drive Pulley

OURX935,0000154 -19-10JAN08-2/2
