Digital Indicators-Tachometer, Ground Speed and Transmission

A-Tachometer: Displays engine speed in multiples of 10. If "- - -" is displayed, no speed signal is being received.

B-Travel Speed Indicator: Displays travel speed in either miles-per-hour or kilometers-per-hour, depending on operator selected units (U.S. or Metric).

If "- - -" is displayed, no speed signal is being received.

C-Transmission Information: Shows if transmission is in Park-P, Neutral-N, Forward-F, Reverse-R, and the gear selected.

If "- - -" is displayed, no gear signal is being received.

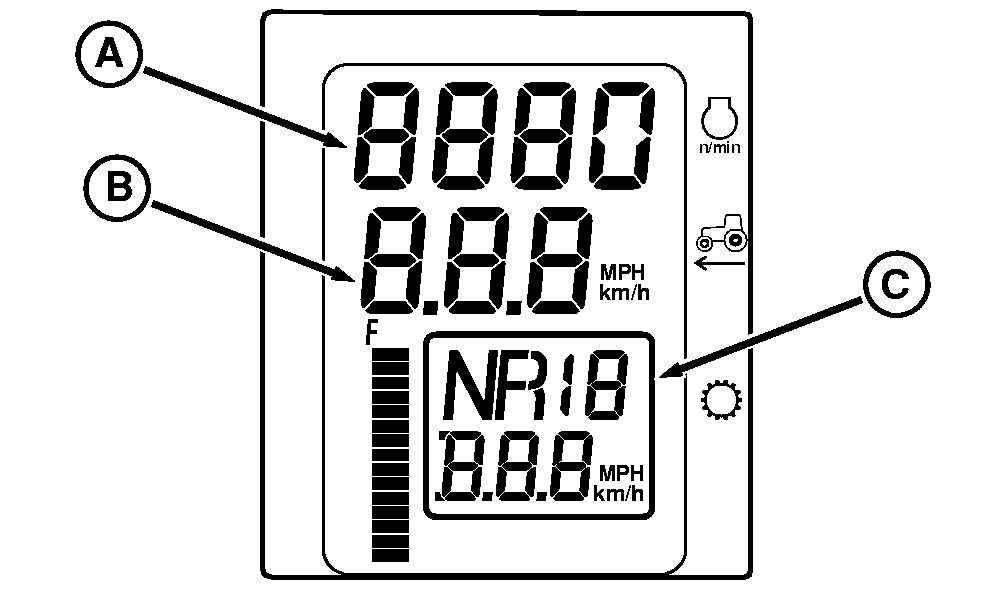

A-Tachometer
B-Travel Speed Indicator
C-Transmission Information (PST Gear Number Shown)

OURX935,0000208 -19-08AUG05-1/1
