Operating Windshield Wiper and Washer (If Equipped)

Wiper/washer switch (A) has four positions:

• Off
• Intermittent Wipe
• Slow Speed
• Fast Speed

Push switch in to operate optional windshield washer.

Fill reservoir (B) with non-freezing windshield washer fluid. Reservoir is located beside ladder.

NOTE: Windshield washer nozzles can be adjusted by inserting a small pin into nozzle opening.

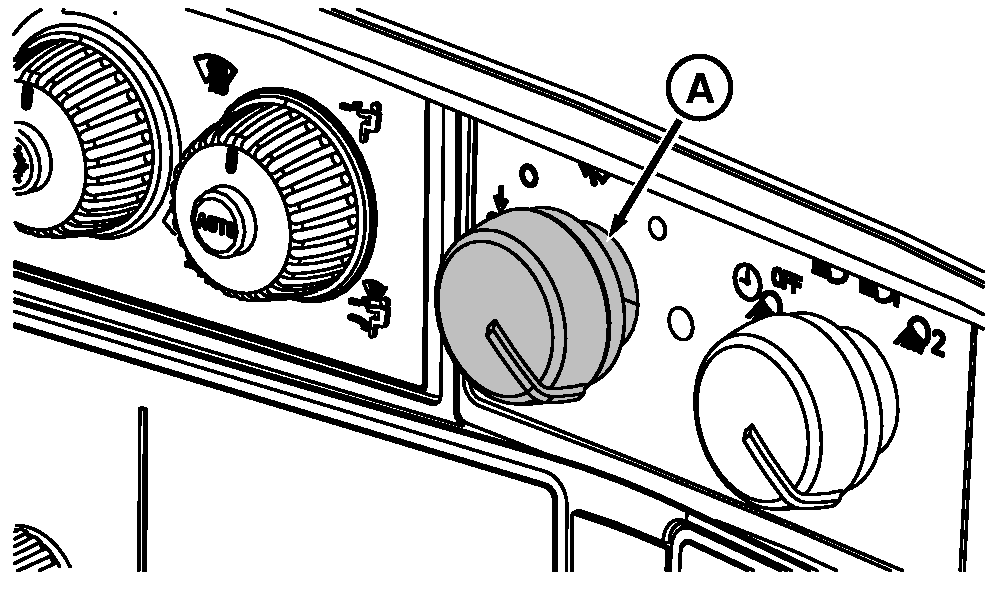

A-Windshield Wiper/Washer Switch

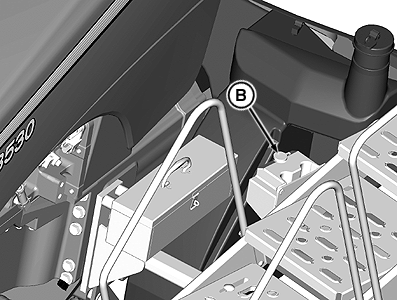

B-Washer Fluid Reservoir

OURX935,0000210 -19-02AUG05-1/1
