Using Hydraulic Motor Case Drain

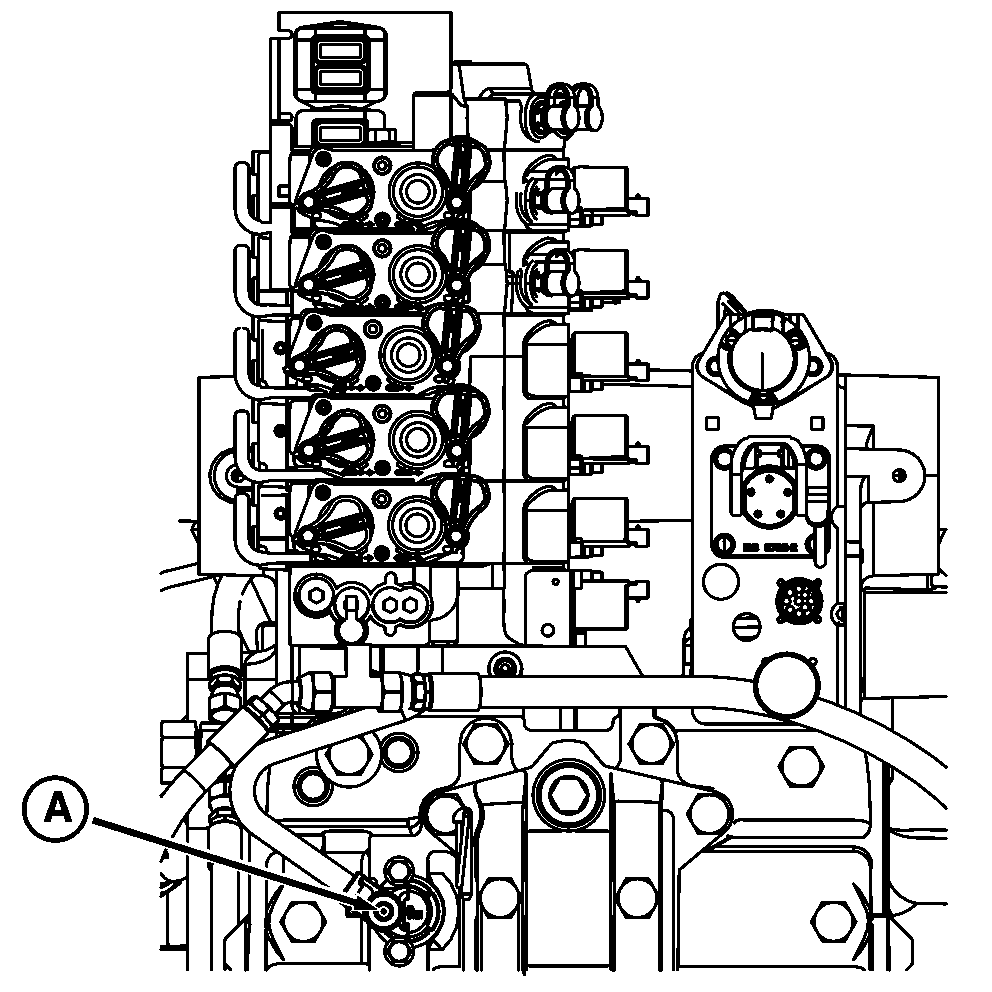

Remove plug (A) and install a hydraulic sump coupler available from your John Deere dealer. Connect motor case or seal drain hose to coupler, making sure hose end and coupler are clean.

This allows oil to drain directly to reservoir (differential case) from hydraulic motor, by-passing remote coupler, SCV, and filter.


A-Plug

RXA0082149

OURX935,000021D -19-11AUG05-1/2

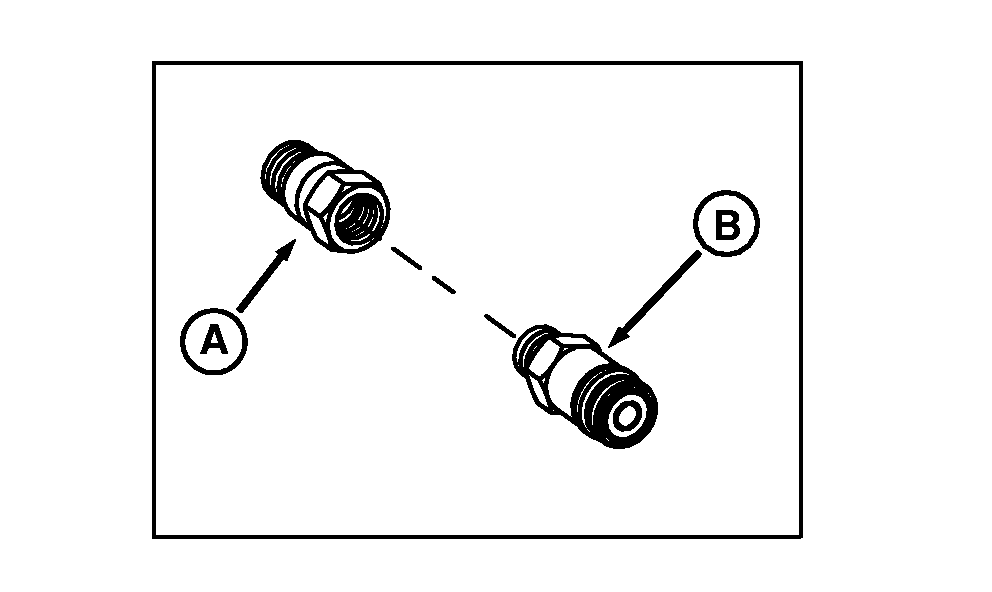

NOTE: Couplers may vary depending on equipment. Early seeding equipment uses a standard coupler. Newer seeding equipment may require a flush face coupler (B) and adapter (A).


A-Adapter
B-Flush Face Coupler

RXA0082406

OURX935,000021D -19-11AUG05-2/2
