Operating Turn Signals and High/Low Beam

NOTE: When turn signal is activated, a short audible chirping sound will be heard.

Push Turn Signal Lever (A) up for a right turn, or pull down for a left turn. Return lever to center position after completing turn.

CAUTION: Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim headlights to low-beam for oncoming vehicles.

Push Turn Signal Lever (A) forward to activate high beam headlights; high beam indicator will come on. Pull Turn Signal Lever into center position to operate low beam. Pull Turn Signal Lever toward you and release will momentarily activate high beams.

Dim headlights for oncoming vehicles.

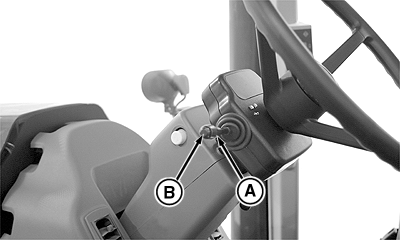

A-Turn Signal Lever
B-Horn

OURX935,0000232 -19-29JUL05-1/1
