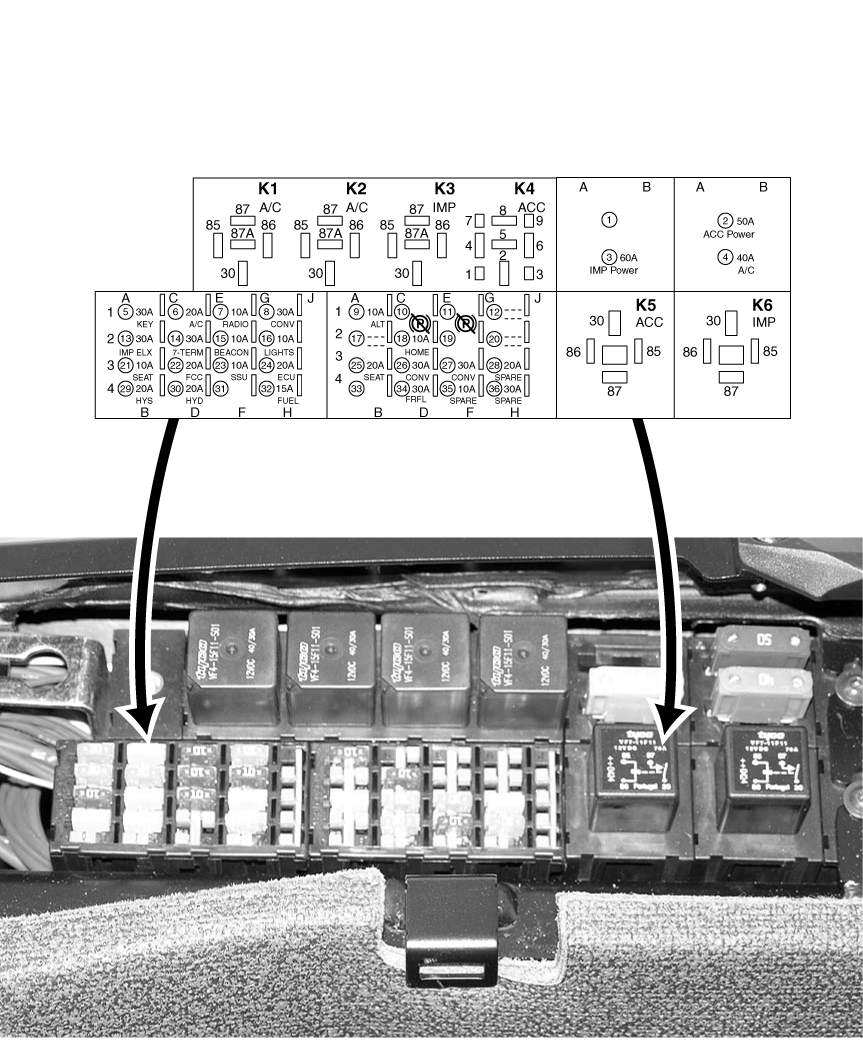

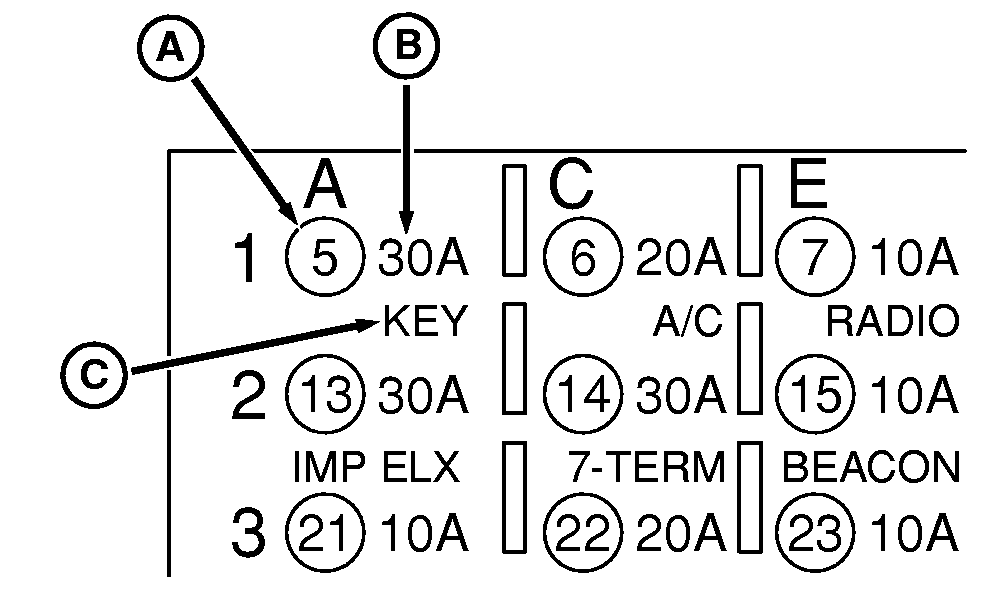

1-Not Used
2-Accessories
3-Implement Power
4-Blower Motor
5-Key Switch
6-ATC and Pressurizer Blower
7-Radio, Steering Column, Horn, Clock and Dome Light-Unswitched Power
8-Right-Hand Junction Block, Convenience Outlet and Lighter-Battery Power
9-Alternator
10-Reserved
|
11-Reserved
12-Not Used
13-Implement ELX, Controllers
14-Accessory Relay/7 Pin
15-Beacon and Power Mirrors
16-Hazard and Light Switch
17-Not Used
18-Reserved
19-Not Used
20-Not Used
21-Operator Presence Seat Switch
22-Flex Cab Controller
|
23-SSU Power
24-Engine Control Unit (ECU)
25-Seat Controls
26-Business Band Radio, CB Radio, Field Office, Left-Hand Junction Block-Acc Key Switch
27-Convenience Right-Hand Junction Block, Accessories
28-Spare
29-Hydraulic Controller (Optional)
30-SCU
|
31-Not Used
32-Electric Fuel Pump
33-Not Used
34-Field Lights, Front Cab Roof- If Equipped
35-Spare
36-Spare
K1-AC Relay, ATC
K2-AC Relay Pressurizer Blower Motor
K3-Not Used
K4-Not Used
K5-Accessory Relay
K6-Implement Power
|
