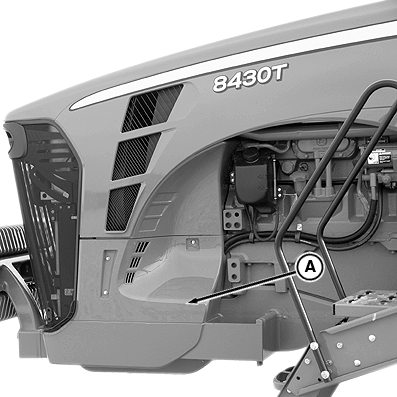

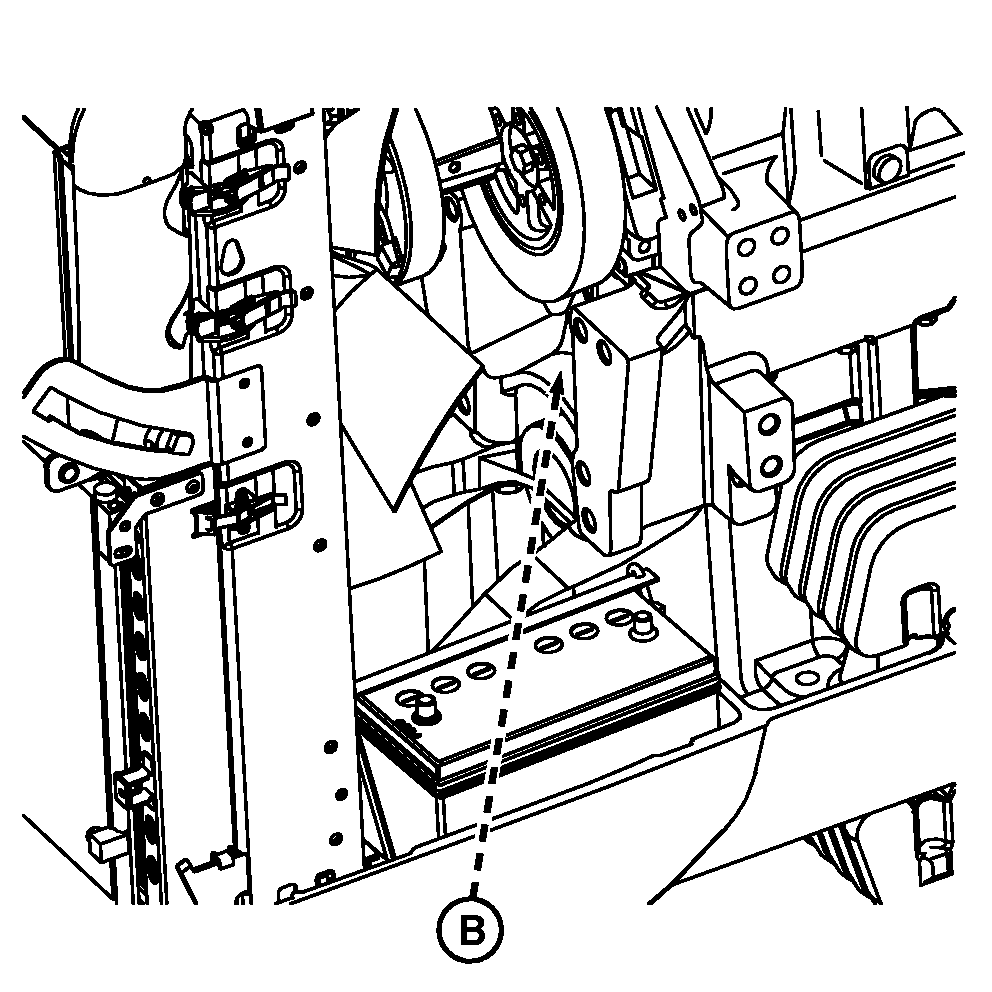

Master FuseIMPORTANT: Fuse replacement must be the same rating as the original. Do not attempt to disassemble master fuse unless instructed by your John Deere dealer. Insure both negative (-) and positive (+) battery connections are disconnected from both batteries prior to fuse inspection or replacement. 8030T Series Tractors have a 250 amp master fuse (B) which can be accessed through battery compartment cover (A) .
|
|
OURX935,0000237 -19-18JUL05-1/1 |
