Camoplast Track Serial Numbers

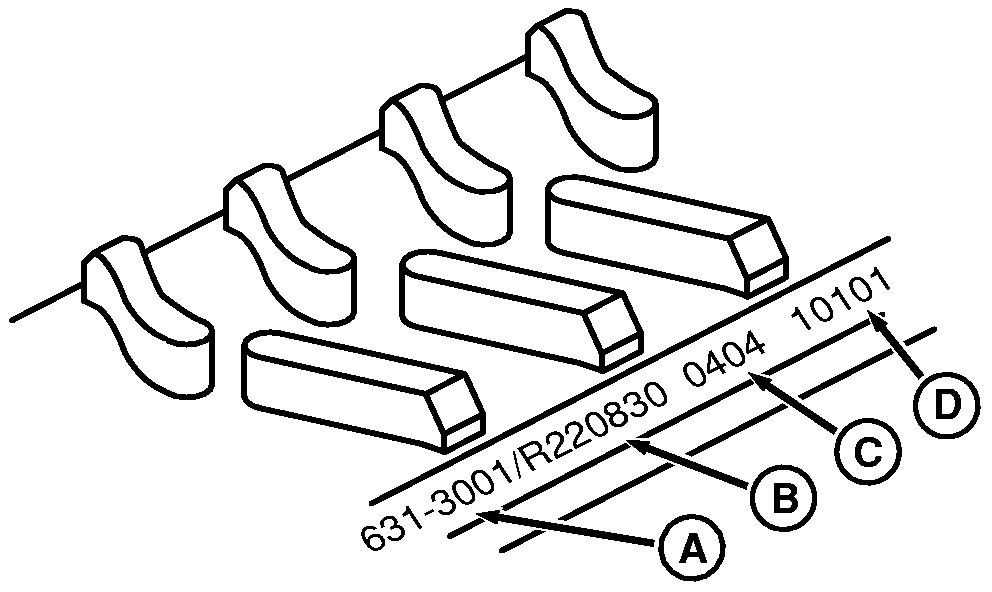

Camoplast tracks have a string of numbers stamped along the edge on each side of the track. The manufacturer number (A) is made up of seven numbers. The John Deere part number (B) is one letter followed by six numbers. The four-digit date reflects when track was manufactured, ie April 2004 is stamped 0404. The last numbers in the string are the five-digit serial number (D). Record the entire string of numbers below.

Left Track Serial Number

*____ ___ ___ ___ ___ ___ ___ ___ ___ ___ __ *

Right Track Serial Number

*____ ___ ___ ___ ___ ___ ___ ___ ___ ___ __ *

A-Manufacturer Number
B-John Deere Part Number
C-Date
D-Serial Number

OURX935,0000249 -19-13AUG05-1/1
