Cleaning or Replacing Cab Air Filters

SERVICE INTERVAL -
  CLEAN - 250 HOURS *
  REPLACE - ANNUALLY

* Interval can vary according to operating conditions



causym CAUTION: The air quality system filters are not designed to remove harmful chemicals. Follow the instructions in the implement operator's manual and those provided by the chemical manufacturer when using agricultural chemicals.

Recirculation Filter

Remove filter cover (A) behind the seat and remove air filter (B). Replace or clean using compressed air. In dusty conditions, this service may be required more often.

Cab Air Filter

IMPORTANT: Thoroughly clean inside of housing before installing filter.

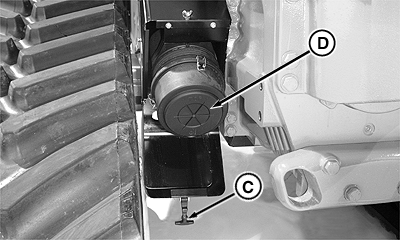

Pull handle (C) to release cover. Remove filter cover (D) and remove filter. Replace or clean filter using compressed air.

RW26590
RW26591
RXA0057230


A-Filter Cover
B-Air Filter
C-Handle
D-Filter Cover

OURX935,0000260 -19-10JAN08-1/1
