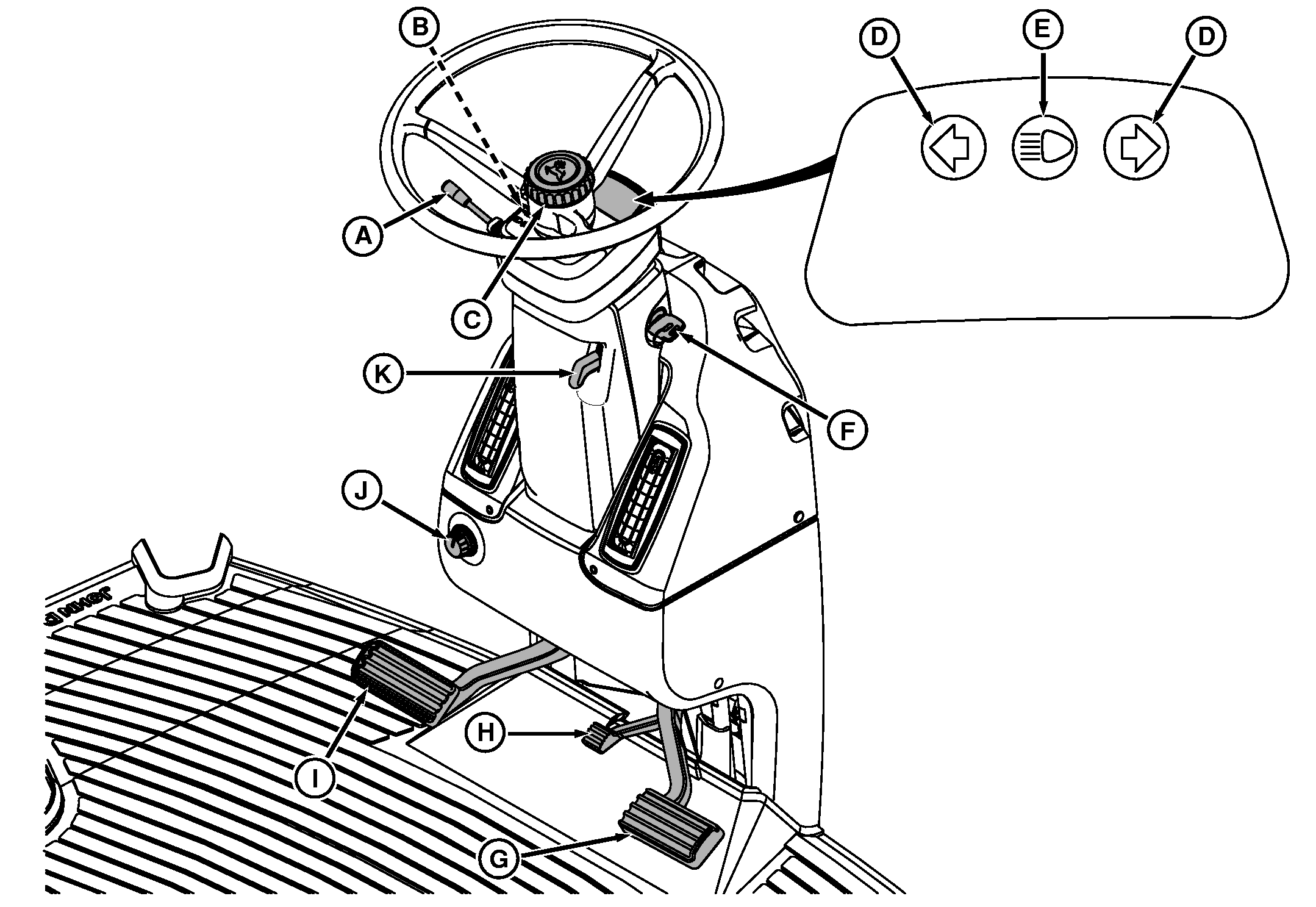

Front Console

RXA0082155


A-Turn Signal Lever, Dimmer Switch and Horn Button
B-Starting Aid Switch (If Equipped)


C-Steering Wheel Telescope Release
D-Turn Signal Indicators
E-High Beam Indicator


F-Key Switch
G-Brake Pedal
H-Steering Column Tilt Release


I-Clutch Pedal
J-Air Flow Direction Control (Standard)
K-Steering Wheel Tilt Release

OURX935,0000284 -19-11AUG05-1/1
