TouchSet Scraper Control-For Scrapers Equipped with Scraper Control Unit

CAUTION: Avoid personal injury or death. Moving scraper control unit, connectors, or linkages, when engine is running, may cause unexpected movement. Stay clear of implement when starting engine.

Tractor selective control valves (SCV I and/or SCV III) are used to electronically control raising, lowering, and setting of implement depth, without leaving the cab. (Used primarily in areas requiring automated laser guidance system for scraper applications.)

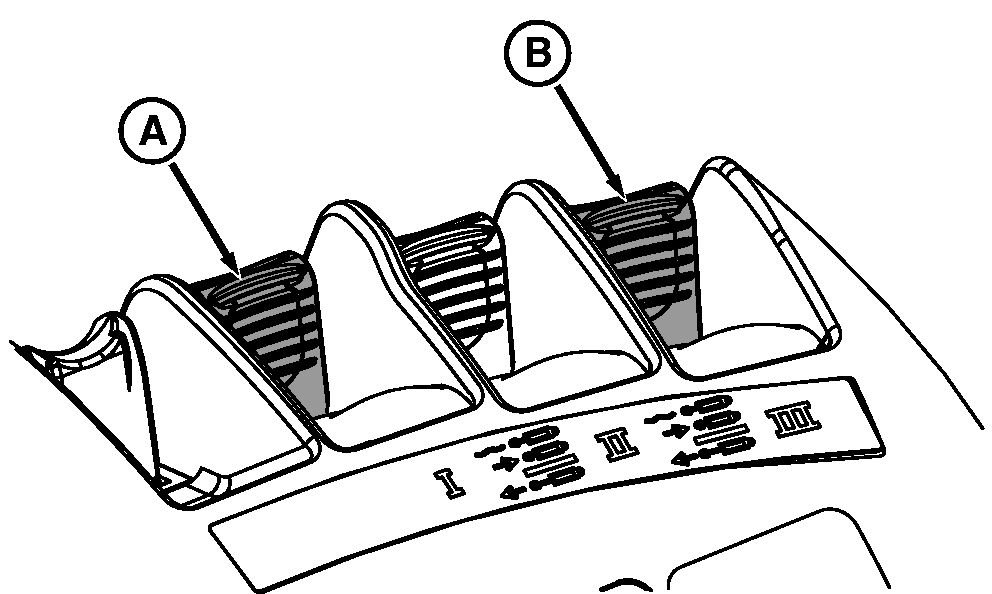

Control lever (A) is used to manually control SCV I and activate an automatic scraper control system.

Control lever (B) is used to manually control SCV III and activate a second automatic scraper control system .

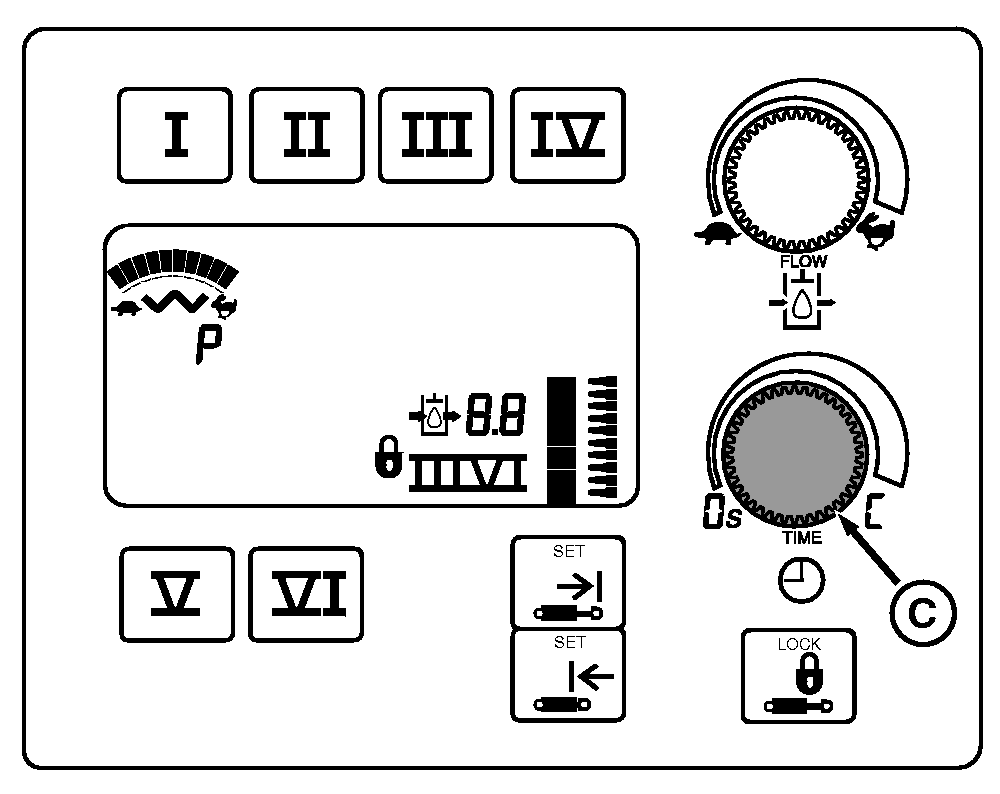

Time control (C) adjusts detent time for each SCV to determine time allowed for cylinder to extend. A setting of "P" replaces the zero ("0") detent time when SCV is activated by TouchSet scraper control unit.

A-SCV I Control Lever
B-SCV III Control Lever
C-Detent Time Adjustment Knob

OURX935,000028E -19-16AUG05-1/1
