Disconnecting Hydraulic Hoses

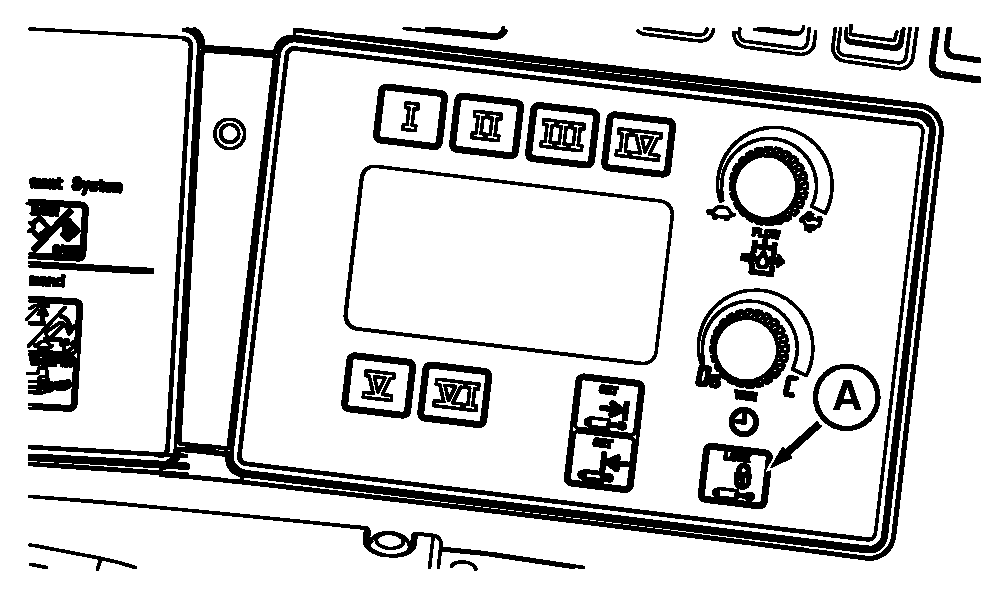

causym CAUTION: Push transport lock switch (A) on SCV TouchSet monitor before detaching implements to prevent implement movement and possible personal injury.

Lower implement to ground before disconnecting cylinder hoses.


A-Transport lock switch

RXA0068327

OURX935,0000297 -19-30NOV07-1/2

Push lever (A) forward to release the retract hose (C) and pull hose straight out SCV.

Pull lever back to release the extend hose (B) and pull hose straight out SCV.


A-Lever
B-Extend Hose
C-Retract Hose
