Using Float Operation

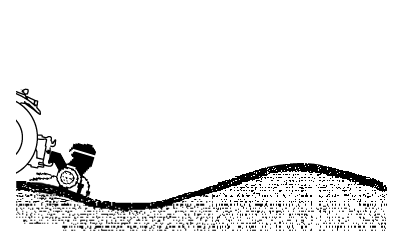

Implements equipped with depth-gauging wheels may require float operation to follow ground contour.
-
Press Hitch Load/Depth Switch (A) and observe display.
-
Turn Command Dial (F) Counter Clockwise (CCW) to set Load/Depth to minimum on draft response scale (B).
-
Hold hitch lever forward until Commanded Depth (C) shows zero, full down.
-
Press Depth Set Switch (E) to save full down as stored depth setting.
NOTE:
Lift links can be adjusted for lateral float. (See Changing Lateral Float in this section.)

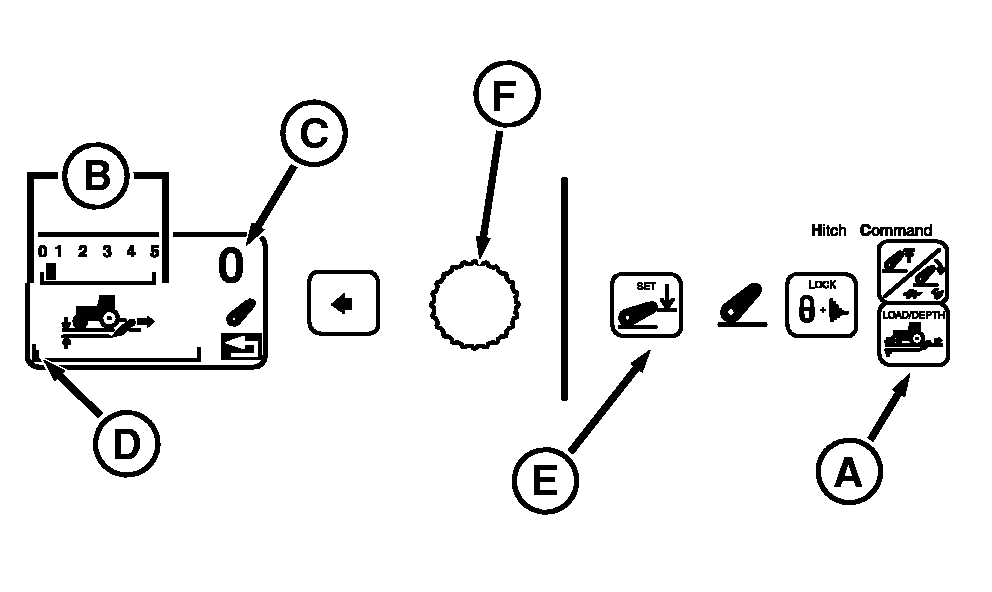

A-Hitch Load / Depth Switch
B-Draft Response Scale
C-Commanded Depth
D-Full Down Depth Setting
E-Depth Set Switch
F-Command Dial
|
Using Float Position
Float Operation
|
