Using Auxiliary Power Strip (If Equipped)

IMPORTANT: Power strip is not a surge suppressor. Electrical equipment with program memory requires protection from damage of electrical surges and spikes.

The power strip (A) provides six outlets of 12-volt power with grounds. This power is 30 amp switched and 30 amp unswitched. The connectors can be used when connecting auxiliary equipment.

Adapters plug directly into power strip. To change to switched power on cigarette lighter adapter remove small tab at end of slot on plug and rotate plug 180°.

Adapters are available from your John Deere Dealer for the following: cigarette lighter adapters, three-way convenience adapters, and standard adapters.

Outlets in the convenience strip have three prongs:

• Battery (unswitched)
• Ground
• Switched

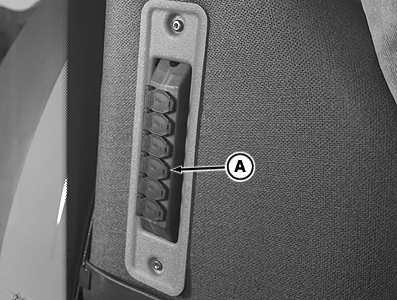

A-Auxiliary Power Strip
B-Battery (unswitched)
C-Ground
D-Switched

OURX935,0000498 -19-02AUG05-1/1
