Adjusting Hitch Rate-of-Drop

causym CAUTION: Excessive drop speed may cause injury or machine damage. Fully lowering implement should take at least two seconds.

Hitch rate-of-drop is adjusted in the CommandCenter.

1. Press Hitch Raise Limit / Rate-of-Drop Switch (A) twice and observe Display (B); current rate-of-drop appears as a Speed Scale (C) across the top.

2. Turn Command Dial (D) counterclockwise for slower rate setting (turtle); clockwise for faster setting (rabbit). Changes to rate-of-drop setting take place immediately.

3. When desired rate is reached, press Select Switch (E) to return to previous display.

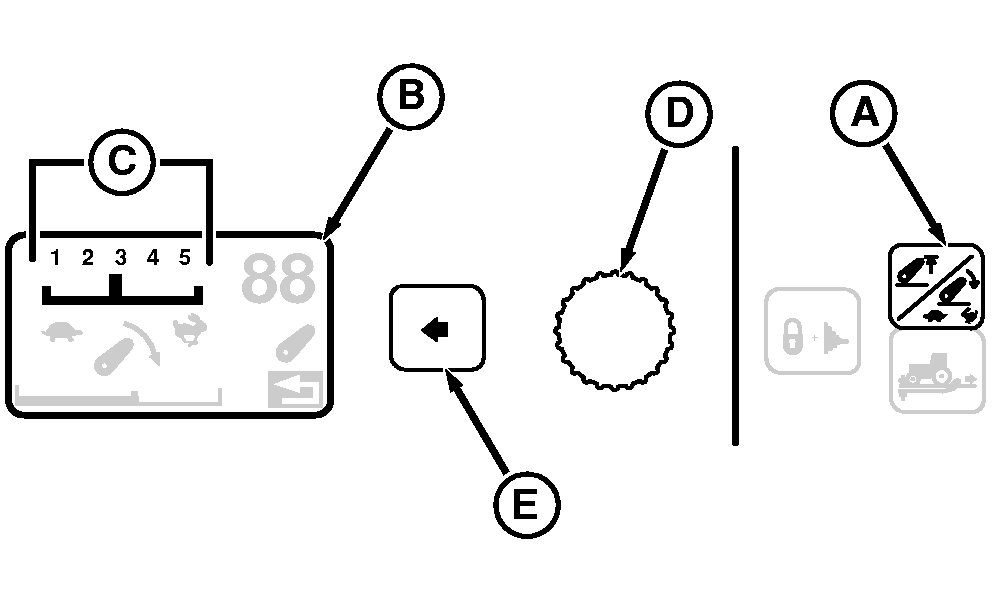

RXA0087384

Hitch Drop Speed Control Knob


A-Hitch Raise Limit / Rate-of-Drop Switch
B-Display
C-Speed Scale
D-Command Dial
E-Select Switch

OURX935,00004C6 -19-20SEP07-1/1
