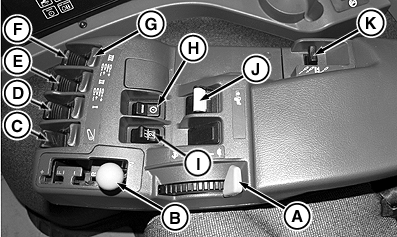

CommandARM Controls - Powershift Transmission
A-Engine Speed Control/Throttle
B-Shift Lever
C-Hitch Control Lever
D-SCV I Lever (Covered)
E-SCV II Lever
F-SCV III Lever
G-SCV Lever Cover
H-Automatic Powershift Resume Switch
I-IMS Sequence Switch
J-Rear PTO
K-SCV IV Lever (If Equipped)
|
