Replacing Cab Roof Hazard Light Bulbs

1. Remove screws (A) and light assembly.

NOTE: Do not drop light bezel.

2. Grasp light bulb retainer (B) as shown and turn counterclockwise approximately 1/4 turn to remove.

3. Remove light bulb (C) by pulling straight out of retainer.

4. Install new bulb in reverse order of removal.


A-Screws
B-Light Bulb Retainer
C-Light Bulb

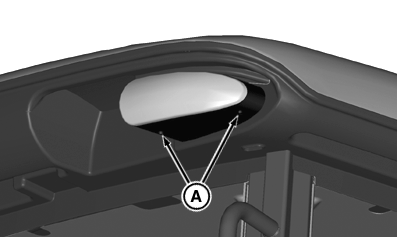

RXA0080421

Cab Roof Light

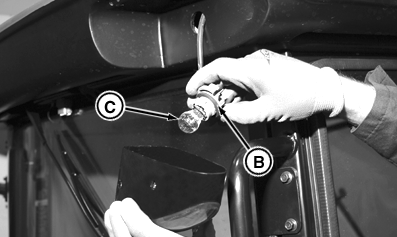

RXA0080420

Remove Retainer

OURX935,000057C -19-28FEB05-1/1
