Changing Starting Fluid Can (If Equipped)

causym CAUTION: Do not use starting fluid near fire, sparks, or flames. Read caution information on the container. Protect container against damage. Do not carry starting fluid cans inside cab.

1. Raise hood to access canister (A).

2. Remove safety cap and plastic spray nozzle from new can.

3. Loosen canister and remove old can.

4. Install new can and tighten canister.

IMPORTANT: To avoid drawing dust into engine, always keep a starting fluid can in position or clean bottom of canister and install bottom side up.

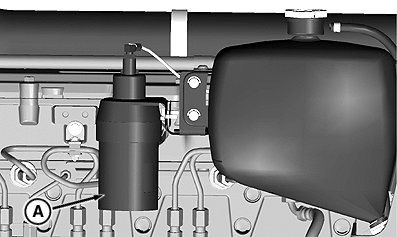

RXA0080155

Right-Hand Side


A-Canister

OURX935,0000583 -19-02JAN08-1/1
