Cleaning Fuel Tank Vent Filter

SERVICE INTERVAL - 750 HOURS

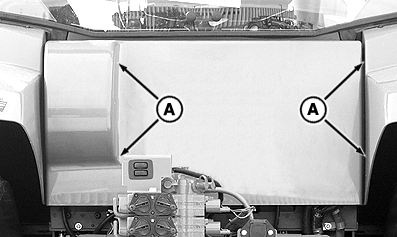

Remove four cap screws and lift off back panel (A).

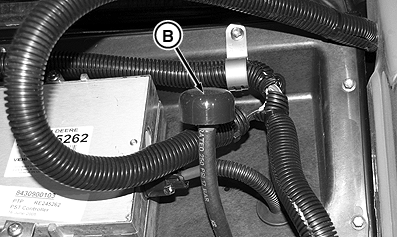

Remove fuel tank vent filter (B) and clean in soapy detergent solution.

Blow dry with compressed air and replace.


A-Back Panel
B-Fuel Tank Vent Filter

RXA0088131

Remove Rear Cover

RXA0081961

OURX935,00005A0 -19-20SEP07-1/1
