IMPORTANT: Engine must be running for FieldCruise ™ to operate.

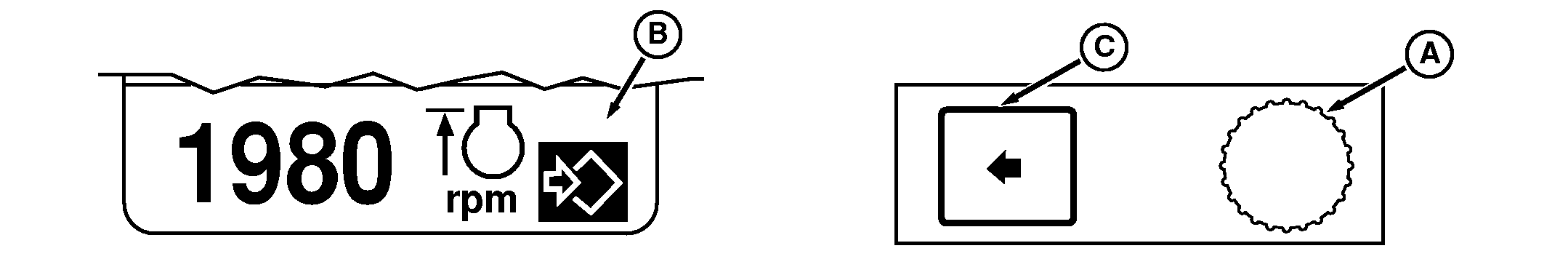

Rotate Command dial (A) to bring FieldCruise screen (B) to bottom-half display.

Press SELECT switch (C), rotate Command dial to raise or lower engine rpm setting as needed, and press SELECT switch again. Engine speed can be adjusted from 1100-2150 rpm. Changes to rpm setting take place immediately. When FieldCruise is

FieldCruise utilizes a constant speed governor curve, providing instant response to varying loads. Use of FieldCruise will remove availability of power bulge and as such is not recommended for heavy tillage applications.

Limiting engine speed in light load situations may improve fuel economy.

FieldCruise is a trademark of Deere & Company

OURX935,00005A4 -19-04APR06-1/1
