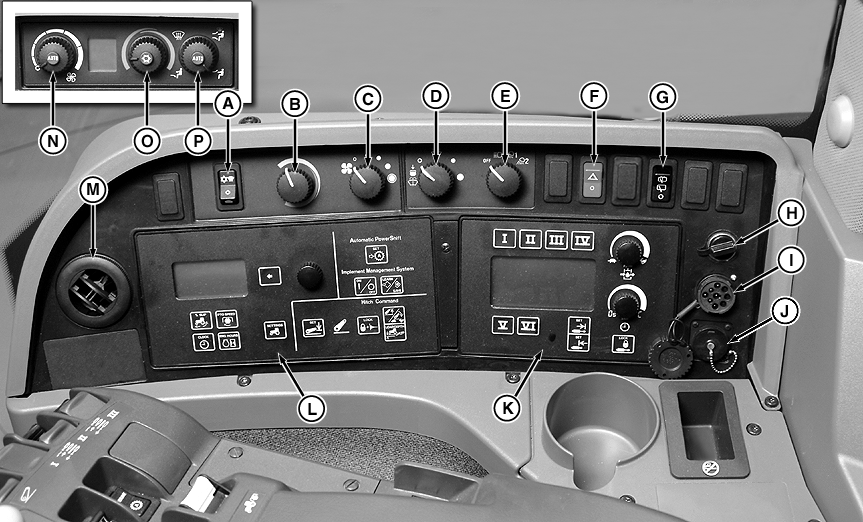

Right-Side Console

A-AC On/Off Switch* (If Equipped) B-Temperature Control Knob* (If Equipped) C-Fan Speed Control Knob* (If Equipped)

D-Windshield Wiper Knob E-Light Selection Knob F-Hazard Light Switch G-Rear Windshield Wiper Switch (If Equipped) H-Cigar Lighter Power Socket I-ServiceADVISOR™ Connector

J-Convenience Electrical Outlet K-TouchSet Control Panel L-CommandCenter M-Air Vent N-Blower Speed Control* (If Equipped)

O-Temperature Set Control* (If Equipped) P-Air Flow Mode Control* (If Equipped)

* Tractors will have either a standard heating air conditioning unit [controls (A-C)] or ClimaTrak controls (N-P).

ServiceADVISOR is a trademark of Deere & Company

OURX935,00005CC -19-12APR06-1/1
