Replacing Road Light Bulb

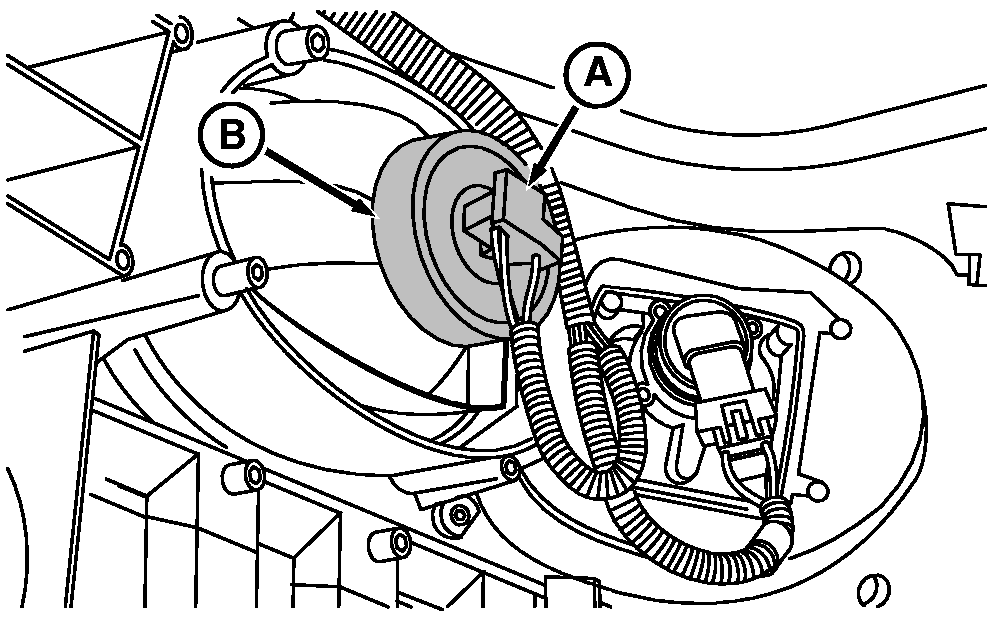

2. Disconnect wiring harness plug (A).

3. Remove dust boot (B).

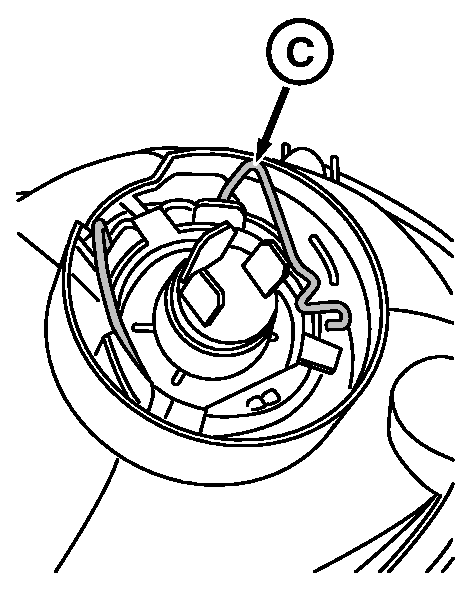

4. Unlatch retaining spring (C) and remove bulb (D).

5. Install new bulb in reverse order of removal.

6. Adjust headlights, if necessary. (See procedure in this section.)

A-Wiring Harness Plug
B-Dust Boot
C-Retaining Spring

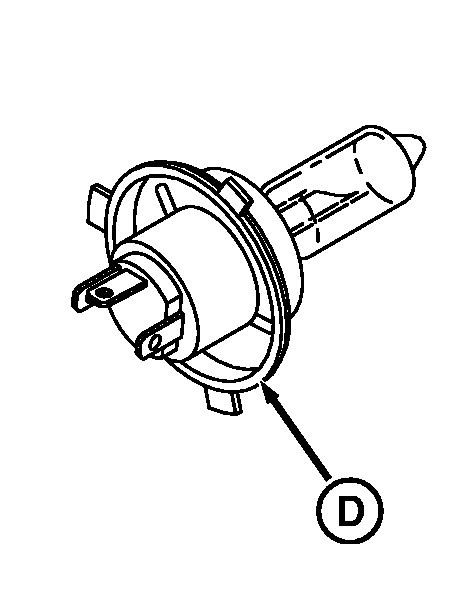

D-Bulb

OURX935,000076A -19-02JAN08-1/1
